First Stop Safety InstaTest100 PAT Tester
Free Tyre Inflator (Spend £500+)
Free Gift
- IEC and ETL test sockets
- Class I and Class II appliance testing
- Up to 1,400 tests per charge
- Optional case & printer
SKU
FSS-INSTA

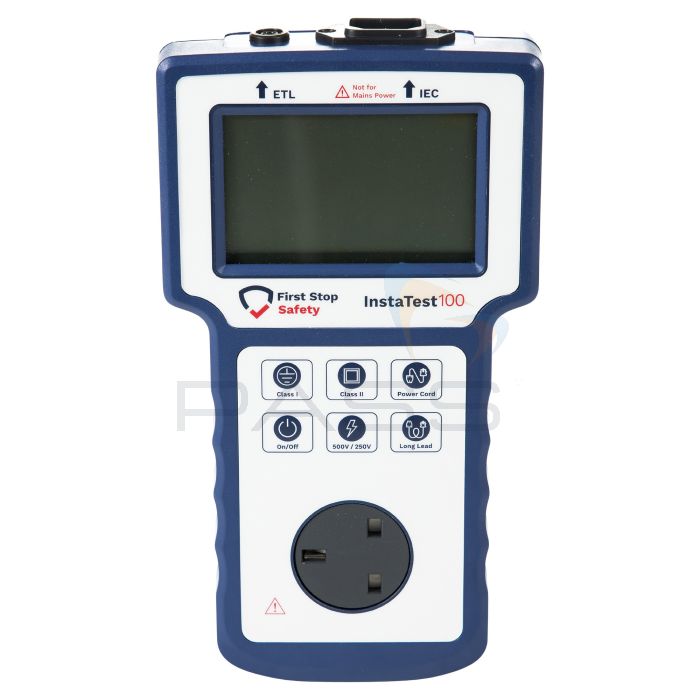

The First Stop Safety InstaTest100 (IT100) PAT Tester has integrated thermal printing technology and Bluetooth connectivity. It features IEC and ETL test sockets, a 13A appliance test socket, and supports both Class I and Class II appliance testing.
The tester includes a rechargeable battery capable of delivering up to 1,400 tests per charge and features an LCD screen that displays numerical test results. It supports lead lengths of up to 45 metres and uses thermal printing technology that does not require ink.
The InstaTest100 supports customisable label templates and is compatible with label sizes of 30mm x 40mm and 30mm x 50mm. A video setup guide and post-purchase support are also included. The tester is supplied with a 12-month warranty and is eligible for a lifetime warranty when recalibrated annually by First Stop Safety.
The InstaTest100 is also available with a case or a case and the FirstPrint Bluetooth printer.
An Introduction to the InstaTest100
Key Features
- IEC and ETL test sockets
- Class I and Class II appliance testing
- 13A appliance test socket
- LCD screen with numerical test results
- Up to 1,400 tests per charge
- Rechargeable battery
- Supports lead lengths up to 45 metres
- Thermal printing technology
- No ink required for printing
- Bluetooth connectivity
- Customisable label templates
- Compatible with 30mm x 40mm labels
- Compatible with 30mm x 50mm labels
- Video setup guide included
- Post-purchase support included
- 12-month warranty
- Eligible for a lifetime warranty, subject to annual recalibration by First Stop Safety
What's Included?
- InstaTest100 with silicone sleeve
- Earth test lead
- USB Charging Cable
- 2M USB lead
- USB charger
- Short IEC lead
- Optional Soft shell case
- Optional FirstPrint Bluetooth printer
Product Range
- First Stop Safety IT100P InstaTest100 PAT Tester
- First Stop Safety IT100P-CASE InstaTest100 PAT Tester with Case
- First Stop Safety IT100P-PLUS InstaTest100 PAT Tester with Case & Printer
Offers
Free Tyre Inflator (Spend £500+)
Automatically adds to your basket when the total exceeds £500+ (ex VAT). Limited Stock. More details here.
FREE PAT Reference Card
- PAT Testing Reference Card 5th Edition - PAT-TEST-CARD, typically £5.00
Technical Information
Specification
| Earth Continuity | Measurement Range 1mΩ to 3000mΩ Accuracy 5% Test Current 180mA O/C Voltage 3.6V |
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Insulation Resistance | Measurement Range 0.3MΩ to 20MΩ Accuracy 5% Test Voltage 500v 10%, 250v 10% Max. Load 300kΩ |
||||||||||||||||||||||
| Substitute Leakage Current | Measurement Range 0.1mA to 10mA Accuracy 5% Test Voltage 30v rms, 50Hz |
||||||||||||||||||||||
| Power on Check | Test Voltage 30v rms, 50Hz | ||||||||||||||||||||||
| Polarity Test | Test Current 1.25mA O/C Voltage 30v Check for Live and Neutral Open Circuit Live and Neutral Crossed Live and Neutral Short Circuit |
||||||||||||||||||||||
| Battery and Charging | Lithium Ion 3.6v 2600mAh Charging 5V USB 500mA max. |
||||||||||||||||||||||
| Operating Temperature | Between 0°C - 40°C | ||||||||||||||||||||||
| Pass/Fail Limits | |||||||||||||||||||||||
| Earth Continuity | Class I - 100mΩ* Class II - N/A Power Cord - 100mΩ* *Default setting for 1m lead length. See Long Lead settings below. |
||||||||||||||||||||||
| Insulation Resistance | Class I - 1.0 MΩ Class II - 2.0 MΩ Power Cord - 1.0 MΩ |
||||||||||||||||||||||
| Substitute Leakage | Class I - 5mA Class II - 5mA Power Cord - N/A |
||||||||||||||||||||||
| Long Lead Settings | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| Package Dimensions (InstaTest100 only) | 238 x 134 x 50mm | ||||||||||||||||||||||
| Weight (InstaTest100 only) | 0.8kg | ||||||||||||||||||||||
Document Downloads
First Stop Safety InstaTest100 PAT Tester Datasheet
First Stop Safety InstaTest100 PAT Tester User Manual
