Fluke 114 Electrician's Digital Multimeter

The results you need without the complications - Fluke's 114 digital multimeter is designed for use by professional electricians in both commercial and residential applications.

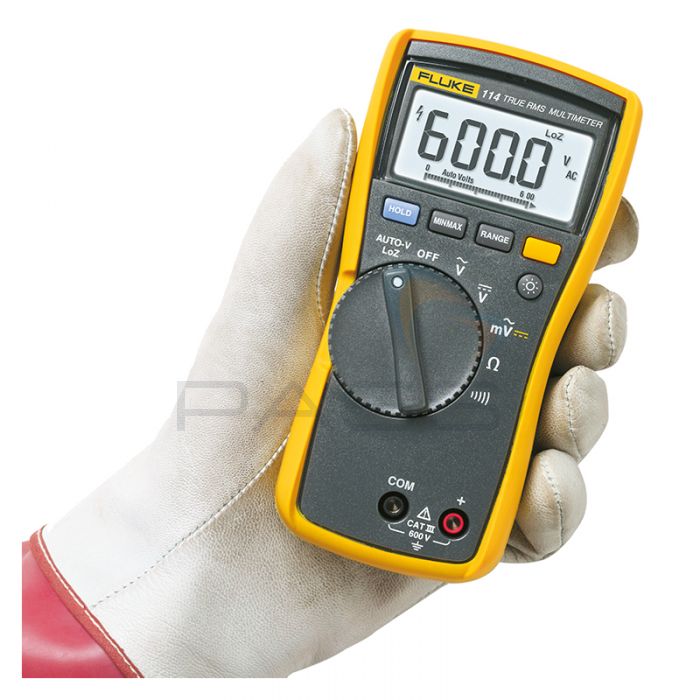

Compact and easy to use with just one hand, the Fluke 114 comes with automatic AC/DC voltage selection, a large size white LED backlight for use in darkened areas and as standard comes with an integrated kick-stand for completely hands-free use.

Fluke's 114 is a true RMS DMM - it ensures accuracy even when you're testing on irregular waveforms. A built-in feature also filters out the effects of ghost voltage to further enhance your testing accuracy.

The Fluke 114 digital multimeter is suitable for testing all basic electrical parameters. It can test AC/DC millivolts to 600mV, AC/DC voltage to 600V and resistance to 6MΩ. An integrated continuity test with beeper is also included.

Additional functions of this unit include analogue bargraph display, MIN/MAX to record signal fluctuations, a display holding function, auto/manual ranging and a low battery indicator.

This digital multimeter is CAT III 600V safety rated.

Fluke 114 Digital Multimeter Key Features

True RMS digital multimeter made for use by electricians
6000 count LCD display with integrated backlight and analogue bargraph
AutoVolt: automatically detects AC or DC voltage
LoZ: low input impedance prevents ghost voltages from interfering with testing accuracy
Test AC/DC voltage to 600V
Test resistance to 6MΩ
Continuity test with integrated beeper
Removable holster with integrated tilt stand
MIN/MAX mode calculates the maximum or minimum value taken over a period of time
Display hold - freezes the current value on the screen
Automatic and manual ranging
Low battery indicator

What's Included?

Fluke 114 Digital Multimeter
Test Leads with 4mm Lantern Tips and Protective Cap
Holster
Installed 9V Battery
User Manual

Part of the Fluke 110 Series of Digital Multimeters

This digital multimeter is just one of four models available in the Fluke 110 series.

The following table outlines the difference between each model in the series.

Model Number	114	115	116	117
True RMS	√	√	√	√
Display Counts	6000	6000	6000	6000
Backlight	√	√	√	√
Analogue Bargraph	√	√	√	√
AutoVolt (Automatic AC/DC Voltage Selection)	√	-	√	√
VoltAlert (Non-Contact Voltage Detector)	-	-	-	√
Built-In Thermometer	-	-	√	-
LoZ (Low Input Impedance)	√	-	√	√
MIN/MAX/AVG Modes	√	√	√	√
Resistance/Continuity Tests	√	√	√	√
Frequency, Capactiance and Diode Tests	-	√	√	√
Microamps Mode	-	-	√	-
Display Hold	√	√	√	√
Auto/Manual Ranging	√	√	√	√
Low Battery Indication	√	√	√	√
Compact Case + Removable Holster	√	√	√	√

Fluke 114 Technical Specifications

Specifications
Maximum Voltage between any terminal and earth ground	600V
Surge Protection	6kV peak per IEC 61010-1 600V CAT III, pollution degree 2
Display	Digital: 6000 counts, updates 4 per second
Bargraph	33 segments, updates 32 per second
Operating Temperature	-10 to +50°C
Storage Temperature	-40 to 60°C
Battery Type	9V alkaline, NEDA 1604A/IEC 6LR61
Battery Life	400 hours typical (without backlight)

Accuracy Specifications
DC Millivolts	Range: 600.0mV Resolution: 0.1mV Accuracy: 0.5% + 2 (% of reading + counts)
DC Volts	Range/Resolution: 6.000V / 0.001V Range/Resolution: 60.00V / 0.01V Range/Resolution: 600.00V / 0.1V Accuracy: 0.5% + 2 (% of reading + digits)
Auto volts	Range: 600.0V Resolution: 0.1V Accuracy: 2.0% + 3 (DC, 45 to 500Hz), 4.0% + 3 (500Hz to 1kHZ)
AC Millivolts True RMS	Range: 600.0mV Resolution: 0.1mV Accuracy: 1.0% + 3 (DC, 45 to 500Hz), 2.0% + 3 (500Hz to 1kHZ)
AC Volts True RMS	Range/Resolution: 6.000V / 0.001V Range/Resolution: 60.00V / 0.01V Range/Resolution: 600.0V / 0.1V Accuracy: 1.0% + 3 (DC, 45 to 500Hz), 2.0% + 3 (500Hz to 1kHZ)
Continuity	Range: 600Ω Resolution: 1Ω Accuracy: Beeper on <20Ω, off > 250Ω, detects opens or shorts of 500μs or longer
Ohms	Range/Resolution: 600Ω / 0.1Ω Range/ Resolution: 6.000kΩ / 0.001kΩ Range/Resolution: 60.00kΩ / 0.01kΩ Range/Resolution: 600.0kΩ / 0.1kΩ Range/Resolution: 6.000MΩ / 0.001MΩ Accuracy: 0.9%+1 Range/Resolution: 40.00MΩ / 0.01MΩ Accuracy: 5%+2

Notes:
1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.
2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.
4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F
