Purpose-built for demanding industrial environments, the Fluke 28 II is the hardwearing digital multimeter you've been looking for.
The 28 II is IP67 rated (both waterproof and dustproof), has MHSA approval, has an extended operating temperature range of -15 to +55°C (and 95% humidity) and has even been designed to resist drops up to a height of 3m (10ft)! For those working in demanding industrial environments where other DMMs might be easily damaged, the Fluke 28 II is ideal.
This digital multimeter can test AC/DC voltage from 0.1mV to 1000V, DC/AC current from 0.1μA to 10A, resistance from 0.1Ω to 50MΩ, capacitance from 1nF to 9999μF, frequency from 0.5 to 199.99kHz and temperature from -200 to +1090°C.
Fluke's 28 II is a true RMS digital multimeter, ensuring accurate results when measuring AC voltage/current on non linear signals. It also includes a high resolution, 20000 count display mode, backlit keypad buttons for use in poor light, a backlight for the screen and long battery life (lasts - on average - for up to 800 hours!).
Fluke 28 II/EUR Industrial Multimeter Key Features
- Durable digital multimeter with drop-tested casing and protection against water/dust damage
- High resolution 20000 count display mode
- Backlit keypad buttons and backlit screen for using the device in darkened conditions
- Reversible holster
- Withstands hazardous 8000 volt spikes caused by load switching and faults on industrial circuits
- Complies with second edition IEC and ANSI electrical safety standards
- Long battery life of 800 hours
- Auto/manual ranging DMM
- True-RMS AC voltage and current measurements
- Unique electrically noisy testing function
- Peak MIN/MAX
- MIN/MAX/AVG recording
- Resistance, continuity and diode testing
- Built-in thermometer
- Extended AC voltage bandwidth of 15Hz to 20kHz
- Frequency to 200kHz
- 10000μF capacitance range
- Measure current up to 10A
- Measure voltage up to 1000V

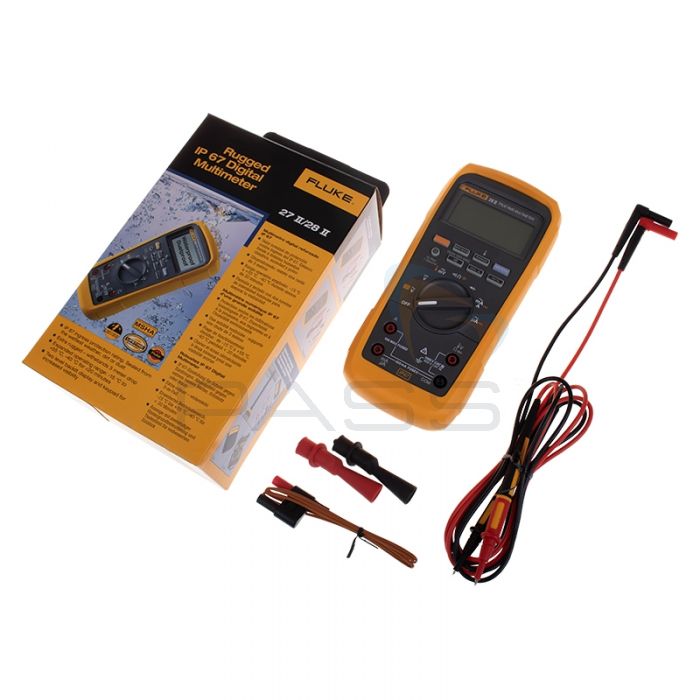

Full List of Products Included
- Fluke 28 II/EUR Industrial Multimeter
- Battery
- Manual
- Software
- Test Leads
- Temperature Probe
- Clips
- Holster
Fluke 28 II/EUR Technical Specifications
DC Voltage | |
Range | 0.1mV to 1000V |
Accuracy | 0.05% + 1 |
AC Voltage | |
Range | 0.1mV to 1000V |
Accuracy | 0.7% + 4 |
DC Current | |
Range | 0.1μA to 10A |
Accuracy | 0.2% + 4 |
AC Current | |
Range | 0.1μA tp 10A |
Accuracy | 1.0% + 2 |
Resistance | |
Range | 0.1Ω to 50MΩ |
Capacitance | |
Range | 1nF to 9999μF |
Temperature | |
Range | -200 to +1090°C |
General Specs | |
Display Counts | 6000/19,999 |
Low Pass Filter (Measurement on VSDs) | Yes |
IP Rating | IP67 |
Power | 3 x AA batteries |
Battery Life | 800 hours |
Peak Transient Capture | 250μS |
MIN/MAX/AVG | Yes |
Reading Hold | Yes |
Relative Readings (Zero) | Yes |
Safety | CAT IV 600V/1000V |
External Protection | Rubber holster |
Drop Test | 10 feet drop test |
Dustproof/Waterproof | IP67 |
Warranty | Limited liftetime |
Size (H x W x L) with Holster | 6.35cm x 10.0cm x 19.81cm (2.5 x 3.93 x 7.8") |
Weight with Holster | 698.5g (1.54lbs) |
SKU | FLUKE28II/EUR |
---|---|
Manufacturer Part Code | 3947820 |
Model Ref | Fluke 28 II/EUR |
Country of Origin | United States |
