Description

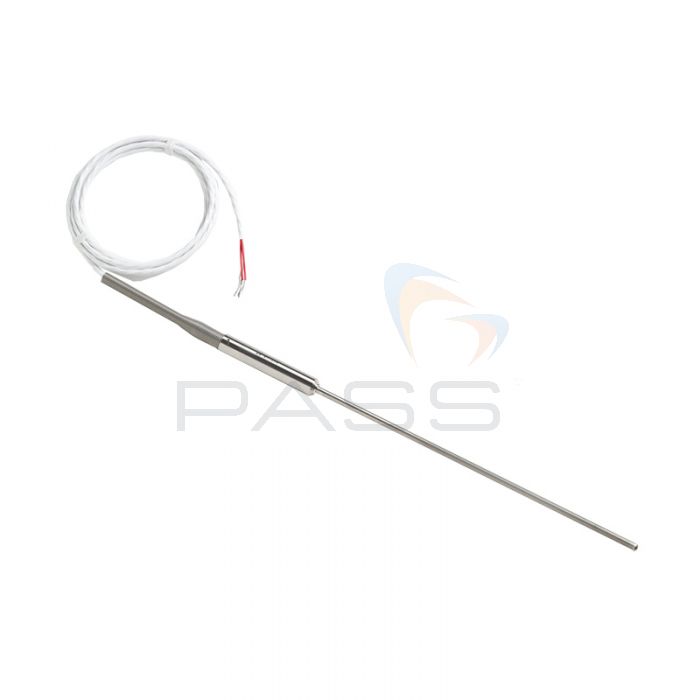

These industrial standards probes have a reduced response time without compromising precision. They work well in many applications where immersion depth is limited. Termination ranges available from A to S. Termination Key.
Product Ranges
- Fluke 5618B-6-B Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-D Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-G Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-J Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-L Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-M Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-P Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-6-S Small Diameter Industrial RTD 1/8 x 6
- Fluke 5618B-9-A Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-B Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-D Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-G Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-J Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-L Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-M Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-P Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-9-S Small Diameter Industrial RTD 1/8 x 9
- Fluke 5618B-12-A Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-B Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-D Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-G Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-J Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-L Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-M Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-P Small Diameter Industrial RTD 1/8 x 12
- Fluke 5618B-12-S Small Diameter Industrial RTD 1/8 x 12
- Termination Key:
- A (INFO-CON for 914X)
- B (Bare wire)
- D (5-pin DIN for Tweener Thermometers)
- G (Gold pins)
- J (Banana plugs)
- L (Mini spade lugs)
- M (Mini banana plugs)
- P (INFO-CON for 1523 or 1524)
- S (Spade lugs)
Tech Specs
Specifications | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resistance | Nominal 100 Ω at 0 °C | ||||||||||||||||
Temperature Coefficient | 0.003923 Ω/Ω/ °C nominal | ||||||||||||||||
Temperature Range | -200 °C to 500 °C (-200 °C to 300 °C for 5618B-6-X) |
||||||||||||||||
Drift Rate | ± 0.1 °C when used periodically to 500 °C | ||||||||||||||||
Drift | ± 0.007 °C at 0.010 °C | ||||||||||||||||
Sheath Material | 316 SST | ||||||||||||||||
Leads | 22 AWG PTFE, 6' | ||||||||||||||||
Hysteresis | Less than 0.01 °C at 0 °C when using -196 °C and 420 °C as the endpoints | ||||||||||||||||
Time Constant | Four seconds maximum for 63.2 % response to step-change in water moving at 3 fps | ||||||||||||||||
Thermal EMF | Less than 25 mV at 420 °C | ||||||||||||||||
Calibration | Includes manufacturer's NVLAP-accredited calibration w/ITS-90 coefficients R vs. T values in 1 °C increments lab code 200706-0 |
||||||||||||||||
Size | 5618B-12: 305 mm L x 3.2 mm dia. (12 x 1/8 in) 5618B-9: 229 mm L x 3.2 mm dia. (9 x 1/8 in) 5618B-6: 152 mm L x 3.2 mm dia. (6 x 1/8 in) |
||||||||||||||||
Calibrated Accuracy† (k=2) | ± 0.026 °C at -200 °C ± 0.066 °C at 0 °C ± 0.219 °C at 500 °C |
||||||||||||||||
Calibration | NVLAP-accredited calibration included lab code 200706-0. Please see the calibration uncertainty table and its explanation of changeable uncertainties. |
||||||||||||||||
†Includes calibration uncertainty and drift specification. |
|
