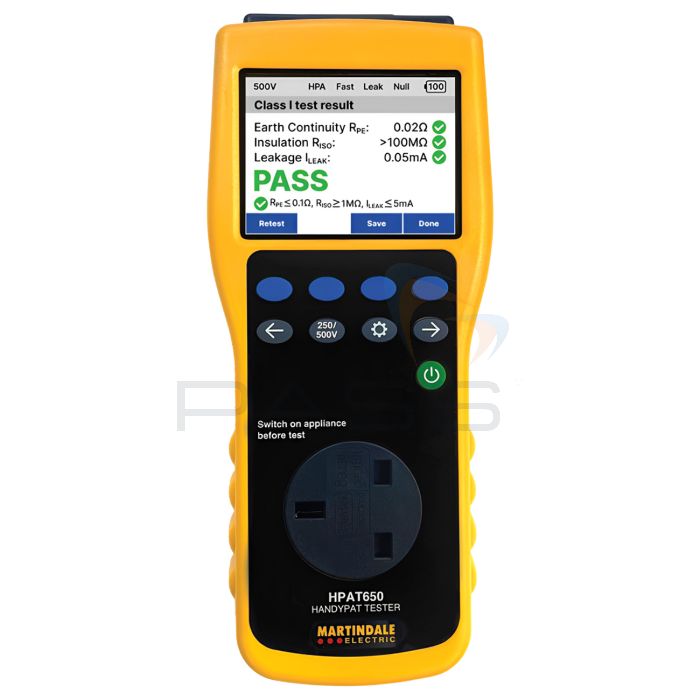

Martindale HPAT650 Portable Appliance Tester (PAT)
- Substitute leakage test
-
Memory (100 Results)
- Selectable 250V or 500V insulation test
SKU
HPAT650
MPN
HPAT650
Intuitive one-button automatic testing with a high-quality colour display and simple PASS/FAIL indicators. The Martindale HPAT650 includes onboard memory storage for up to 100 results, a choice between single and sequenced test execution modes, adjustable pass limits (perfect for long extension leads), and a substitute leakage test to simulate earth leakage current.
The tester supports Class I, II, and IEC lead testing with selectable 250V and 500V insulation test voltages, performing safe 200mA earth continuity tests for IT equipment.
Key Features
- Compact, portable design
- High-quality colour display with optional help screens
- Clear and simple PASS / FAIL indication with measured values
- Automatic testing Class I, Class II & IEC power lead tests
- I.T. safe 200mA earth bond test
- Selectable 250V or 500V insulation test
- USB-C rechargeable, fast charge support and power save mode
- Memory storage with on-screen recall
- Adjustable test limits for long mains leads
- Single and sequenced test execution mode
- Substitute Leakage Test at reduced voltage for checking the earth leakage
| Capabilty | HPAT550 | HPAT650 |
|---|---|---|
| Class I / Class II test | ✔ | ✔ |
| Pass / Fail Indication | ✔ | ✔ |
| Test Values Displayed | ✔ | ✔ |
| 200mA Earth Continuity Test Current | ✔ | ✔ |
| Insulation Test Voltage 250V & 500V | ✔ | ✔ |
| Lead Test | ✔ | ✔ |
| Rechargeable (via USB-C) | ✔ | ✔ |
| Sequenced Test Mode | ✔ | ✔ |
| Single Test Execution Mode | ✘ | ✔ |
| Memory (100 Results) | ✘ | ✔ |
| Selectable Limits | ✘ | ✔ |
| Substitute Leakage Test | ✘ | ✔ |
What's Included?
- Tester
- TL67 earth bond probe
- EX322 IEC adaptor lead
- TC57 carry case
- USB-A to USB-C cable
- TL178 null pin on keyring
- Instruction manual
- Verification certificate
Offers
FREE PAT Reference Card
- PAT Testing Reference Card 5th Edition - PAT-TEST-CARD, typically £5.00
Technical Information
Specification
| HPAT550 (No Memory, Sequenced Mode Only) |
HPAT650 (Memory, Single & Sequenced Modes) |
|
|---|---|---|
| Earth Continuity | ||
| Test Voltage | >4V DC (into open circuit) | |
| Test Current | >200mA DC (into short circuit) | |
| Range | 0.01 - 20Ω | |
| Resolution | 0.01Ω | |
| Accuracy | ± (5% of reading + 2 digits) | |
| Fixed / Default Pass Limits | Fixed ≤0.1Ω ≤0.5Ω selectable pass for long cable |
Default ≤0.1, user settable ≤0.5Ω selectable pass for long cable |
| User-Settable Limits | - | ≤0.1Ω to ≤0.9Ω in 0.1Ω steps |
| Insulation | ||
| Test Voltage | User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit) |
|
| User Selectable Voltage | ||
| Test Current | <2mA (into short circuit) | |
| Range | 0.01MΩ - 100MΩ | |
| Resolution | 0.01MΩ (10kΩ - 2MΩ) 0.1MΩ (2MΩ - 20MΩ) 1MΩ (20MΩ - 100MΩ) |
|
| Accuracy | 5% reading + 2 digits | |
| Pass Level | Lead: ≥ 1.0MΩ Class I: ≥1.0MΩ Class II: ≥2.0MΩ |
|
| User-settable Pass Level | - | ≥0.3MΩ to ≥ 1MΩ in 0.1MΩ steps ≥1MΩ to ≥ 10MΩ in 1MΩ steps |
| Substitute Leakage Test | ||
| Test Voltage | - | <50V AC (into open circuit) 0.02-20mA DC (into short circuit) |
| Accuracy | - | ± (5% reading + 2 digits) |
| Pass Level | - | <5mA |
| Memory | ||
| Test Records | - | 100 tests stored for on-screen recall |
| Power | ||
| Batteries | 3.7V 5000mAh lithium polymer battery (non-user replaceable) | |
| Battery Life | Fully charged, minimum 1700 complete tests, approx. | |
| Auto Power Down | Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity | |
| Environmental | ||
| Location | Suitable for indoor and outdoor use in dry weather conditions only | |
| Altitude | Up to 2000m | |
| Operating Temperature | 0°C to 40°C | |
| Humidity | ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C | |
| Ingress Protection Class | IP20 | |
| Pollution Degree | 2 | |
| General | ||
| Overload Protection | 300V AC/DC | |
| Protection Class | IP20 | |
| Safety | Complies with BS EN 61010-1 | |
