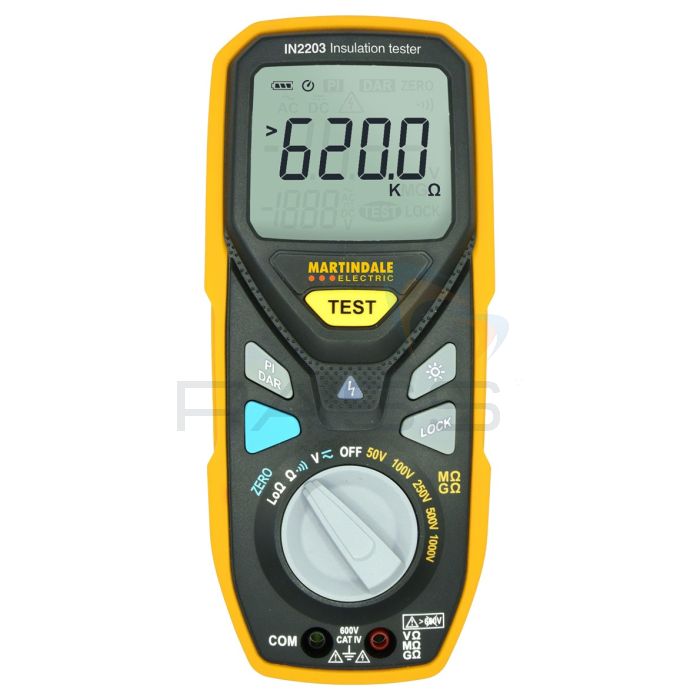

Martindale IN2203 Advanced Insulation Tester
- Five insulation test voltages
- Voltage, resistance & continuity measurement
- 200mA Earth bond test
- PI & DAR measurement
SKU
MARIN2203
MPN
IN2203
The Martindale IN2203 Advanced Insulation Tester conducts various electrical tests. It features five selectable insulation test voltages, up to 1000 V, and measurements up to 20 GΩ. It also has PI and DAR functions that provide proactive maintenance to prevent future failures, while the 200 mA earth-bond continuity test guarantees safe, regulation-compliant installations.
User safety is assured with live circuit detection, which blocks testing if voltage is present—eliminating risk of accidental shocks or damage. In addition to versatile multimeter functions for AC/DC voltage and resistance, its audible buzzer facilitates troubleshooting, enhancing job productivity, and accelerating installations. The tester comes supplied with a TC57 heavy-duty nylon carry case and TL47 unfused test lead set.
Key Features
- Insulation resistance test voltages 50V, 100V, 250V, 500V & 1000V
- Insulation test range up to 20GOhms
- Live circuit detection
- Low ohms earth-bond continuity test (200mA)
- Voltage measurement up to 1000V
- Resistance measurement up to 600K Ohms
- Continuity test with buzzer
- Measurement of polarisation index & dielectric absorption rate
- Safety rating EN 61010 600V CAT IV / 1000V CAT III
- Large backlit LCD
- Rugged rubber holster
- Auto power-off
What's Included?
- IN2203 Advanced insulation tester
- TL47 Unfused test lead set
- TC57 Carry Case
- Instruction Manual
Offers
Black Friday Free Gift (Spend £200+)
Get a free gift this Black Friday! Even better, this bonus stacks with any other offer.
- Spend £200+ get a free Head Torch OR
- Spend £500+ get a free Digital Tyre Inflator
Free item will automatically add to your basket. Limited Stock. Offer is based on ex VAT basket total after discounts and before shipping costs. See Black Friday Offers for details.
Technical Information
Specification
| INSULATION TEST VOLTAGE | MEASUREMENT RANGE | ACCURACY |
|---|---|---|
| 50V | 30KΩ - 1.00GΩ | ± (3% of reading + 5 digits) |
| 100V | 60KΩ - 2.00GΩ | ± (3% of reading + 5 digits) |
| 250V | 0.15MΩ - 1.50GΩ | ± (3% of reading + 5 digits) |
| 1.50GΩ - 5.0GΩ | ± (10% of reading + 3 digits) | |
| 500V | 0.30MΩ - 3.00GΩ | ± (3% of reading + 5 digits) |
| 3.00GΩ - 10.0GΩ | ± (10% of reading + 3 digits) | |
| 1000V | 0.60MΩ - 6.00GΩ | ± (3% of reading + 5 digits) |
| 6.00GΩ - 20.0GΩ | ± (10% of reading + 3 digits) | |
| AC / DC VOLTAGE | ||
| Range | 60.00V / 600.0V / 1000V | |
| Resolution | 0.01V / 0.1V / 1V | |
| Accuracy (AC: 45 - 500Hz) | ± 2% of reading + 5 digits | |
| RESISTANCE | ||
| Range | 600.0Ω / 6.000KΩ / 60.00KΩ / 600.0KΩ | |
| Resolution | 0.1Ω / 0.001KΩ / 0.01KΩ / 0.1KΩ | |
| Accuracy | ± 2% of reading + 5 digits | |
| CONTINUITY | ||
| Range | 600.0Ω | |
| Resolution | 0.1Ω | |
| Beeper | ≤7Ω ± 1Ω | |
| LoΩ | ||
| Range | 6.00Ω / 60.0Ω | |
| Resolution | 0.01Ω / 0.1Ω | |
| Accuracy | ± 2% of reading + 3 digits | |
| GENERAL SPECIFICATIONS | ||
| Auto Power Aff | Approx. 10 minutes | |
| Approvals | EN 61010 600V CAT IV / 1000V CAT III | |
| Electromagnetic Compatibility | EN 61326-1 | |
| Dimensions / Weight | 206(L) x 90(W) x 51(H) mm / Approx. 510g (with holster & battery) | |
Document Downloads
Martindale IN2203 Advanced Insulation Tester Datasheet
Martindale IN2203 Advanced Insulation Tester User Manual
