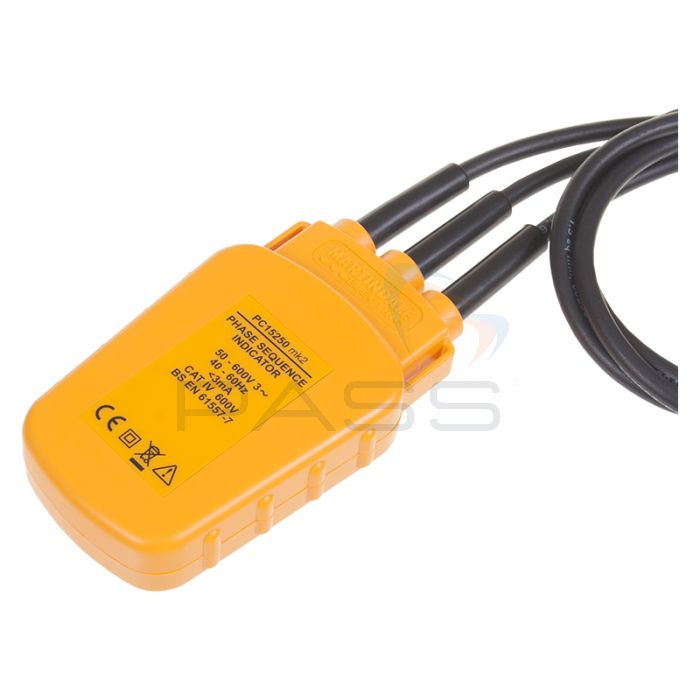

Martindale PC15250 Phase Rotation & Continuity Indicator
Martindale's PC15250 is a simple and effective instrument for quickly checking the that machinery and 3-phase outlets are wired correctly and won't experience problems or pose a danger to others when used.
The PC1520 consists of a indicator attached via a flexible cable to three probes. These probes feature retractable GS38 tips, allowing users to increase or decrease the overall length of the probe depending upon the application it is being used in.
Each probe is designed for use with a different part of a three-phase system and depending upon what is detected the main testing body of this unit will light up LED indicators to showcase that phases are correct/incorrect.
Martindale PC15250 Phase Rotation and Continuity Indicator Key Features
- For use on systems from 100V to 600V
- Test machinery and three phase systems
- CAT III 600V
- GS38 and BS EN61010 compliant
Full List of Products Included
- Martindale PC15250 Phase Rotation and Continuity Indicator
- Fused Crocodile Clip
- Two Fused Probes with Retractable Shrouds
Martindale PC15250 Technical Specifications
| Electrical | |
| Input Voltage Range | 50V to 600V AC (Phase to Phase) |
| Input Frequency | 40 to 60Hz |
| Input Current | < 3mA |
| Environmental | |
| Temperature (Operating and Storage) | -10°C to 55°C |
| Humidity (Operating and Storage) | 85% R.H |
| Altitude | Up to 2000m |
| Pollution Degree | 2 |
| General | |
| Power | From circuit under test |
| Fuses | 600V 0.5A 50kA HRC rated fuses (6x32mm) x 3, one in each probe |
| Dimensions | 116(L) x 69(W) x 25(D) mm |
| Weight Packed | 361g approx |
| Includes | Instructions |
| Safety | |
| Conforms | GS38 & BS EN61557-7, CAT IV 600V |
| Class | II, Double Insulation |
| EMC | BS EN61326-2-2 |
