Norbar HT-52 Handtorque Multiplier & NORTORQUE® 60 Torque Wrench Kit

The Norbar HT-52 Handtorque Multiplier & NORTORQUE® 60 Torque Wrench Kit has been designed to ensure that the user is equipped with everything he/she requires in order to carry out bolting applications.

This kit contains the following tools:

  • Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier, 1000 N.m,  ½” in, ¾” out
  • Norbar NORTORQUE® 60 Push-through Torque Wrench, Dual Scale, 60 N.m/ 45 lbf.ft
  • Norbar ½” SpinNor

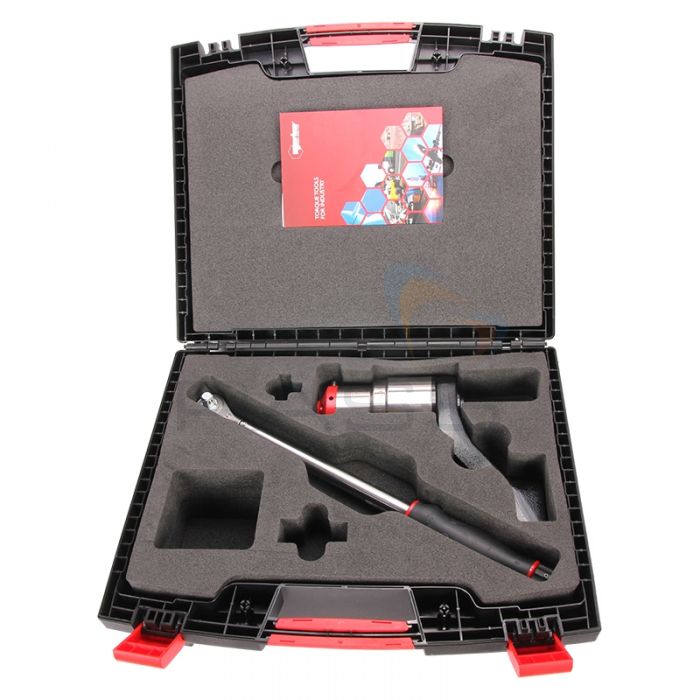

  • Carry Case

The carry case supplied with this kit includes space for the above tools as well as accessories such as sockets. Additionally, the included Norbar HT-52/22.2 Handtorque Multiplier is supplied with a unique calibration certificate, and the Norbar NORTORQUE® 60 Push-through Torque Wrench is supplied with a Declaration of Conformance. These documents provide assurance that these tools can be used to calculate input torque accurately, ensuring that this kit is suitable for critical applications.

For further information regarding the items included in this kit, please see the following descriptions.

Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier, 1000 N.m, ½” in, ¾” out Description

The Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier features a torque multiplication ratio of 22.2:1, a torque multiplication accuracy of ±4% and a torque range of 1000 N.m. It is also equipped with a ½-inch input square and ¾-inch output square, as well as a 52mm diameter. All these features make the Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier ideal for high-torque applications in tight spaces.

As this instrument allows the user to increase the amount of torque applied to a bolt, a smaller torque wrench with a more limited range can be used to perform high-torque applications. This simultaneously solves issues of space, user-strength and safety. The minimalist dimensions, 52mm diameter and lightweight design of the Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier all provide excellent access to applications in tight spaces.

Further to this, its lightweight design increases torque capacity and improves the Norbar HT-52/22.2-AWUR Multiplier's safety and ease-of-use. Easy and safe handling are also ensured by the Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier's compact design and 48-tooth, anti-wind-up ratchet (AWUR). The AWUR contains the forces generated during tightening.

In addition to an AWUR, the Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier is supplied with a steel reaction (reactions in other styles and made of alternative materials are available on request, please call for details PRIOR to purchase), as well as a calibration certificate that is unique to the instrument. The Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier is calibrated from 20% of its maximum capacity to ensure the accuracy of calibrated input torque for critical applications.

The Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier is an accurate, easy-to-use and rugged multiplier suitable for high-torque applications.

Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier Key Features

  • Torque multiplication ratio: 22.2:1
  • Torque multiplication accuracy: ±4%
  • Torque range: 1000 N.m
  • Input square: ½”
  • Output square: ¾”
  • 52mm diameter
  • Ideal for high-torque applications in tight spaces
  • Increase the amount of torque applied to a bolt
  • Allows the operator to use a smaller torque wrench for high-torque applications
  • Solves issues of space, user-strength and safety
  • Compact, lightweight design with 52mm diameter provides easy access to applications
  • Lightweight design increases torque capacity
  • Lightweight, compact design improves safety and ease-of-handling
  • 48-tooth, anti-wind-up ratchet contains the forces generated during tightening
  • Supplied with a steel reaction
  • Reactions in other styles and constructed from alternative materials are available, please call for details
  • Supplied with a unique calibration certificate
  • Calibrated from 20% of the maximum capacity
  • An accurate, easy-to-use and rugged multiplier for high-torque applications

Norbar NORTORQUE® 60 Push-through Torque Wrench, Dual Scale, 60 N.m/ 45 lbf.ft Description

The Norbar NORTORQUE® 60 Push-through Torque Wrench Dual Scale can be used with the above Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier to apply high torques to bolts. This torque wrench has been optimised for a variety of users ranging from professional mechanics to hobbyists.

This torque wrench is dual scale and is able to generate torques from 12 to 60 N.m or 10 to 45 lbf.ft; it is accurate to within ±3% of the reading and is compliant with ISO 6789-1:2017. The Norbar NORTORQUE® 60 Push-through Torque Wrench features a micrometre scale for the primary torque units (N.m) allowing the user to set the correct torque simply. Moreover, its fast and intuitive push/pull lock ensures that the set torque is not altered accidentally.

The push-through design of the Norbar NORTORQUE® 60 Torque Wrench’s ratchet allows the user to control torque in both clockwise and anti-clockwise directions. This ratchet also allows the user to access tight spaces as it features a narrow engagement angle of 5°.

The user is able to cover the Norbar NORTORQUE® 60 Push-through Torque Wrench’s entire scale in eight turns. Its light and fast adjustment improve the efficiency with which the wrench can be operated and reduces the effort required to alter the tool. Its hanger feature also helps with adjusting and unlocking the wrench and provides a convenient storage method.

The Norbar NORTORQUE® 60 Push-through Torque Wrench is an easy-to-use, effective and efficient instrument. It can be used to generate accurate torques which may be increased using the above Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier.

Norbar NORTORQUE® 60 Push-through Torque Wrench Key Features

  • Use with the Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier to apply high-torques to bolts
  • Range: 12 – 60 N.m / 10 – 45 lbf.ft
  • Accuracy: ±3%
  • Compliant with ISO 6789-1:2017
  • Features a micrometre scale for the primary, torque units (N.m)
  • Set the correct torque simply
  • Push/ pull lock ensures that the set torque is not altered accidentally
  • The push/ pull lock is fast and intuitive
  • Push-through design of the ratchet allows the user to control torque in both clockwise and anti-clockwise directions
  • Narrow engagement angle of 5°
  • Cover entire scale in eight turns
  • Light and fast adjustment improves the efficiency and physical ease with which the wrench can be adjusted
  • Hanger feature aids in adjusting and unlocking the wrench
  • Hanger feature allows the wrench to be stored conveniently
  • An easy-to-use, effective and efficient instrument
  • Generate accurate torques that may be increased using the above multiplier

What’s Included?

  • Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier, 1000 N.m,  ½” in, ¾” out
  • Norbar NORTORQUE® 60 Push-through Torque Wrench, Dual Scale, 60 N.m/ 45 lbf.ft
  • Norbar ½” SpinNor
  • Carry Case

Norbar HT-52 Handtorque Multiplier & NORTORQUE® 60 Torque Wrench Kit Technical Specifications

Please find below the technical specifications available for to tools included in this kit.

Norbar HT-52/ 22.2-AWUR Compact Handtorque Multiplier Technical Specifications

Tool Weight 1.4 kg
Multiplication Ratio 22.2:1
Output Square 3/4"
Input Square 1/2"
Plate Weight 0.85 kg

Norbar NORTORQUE® 60 Push-through Torque Wrench, Dual Scale Technical Specifications

Length 328mm
Weight 0.7kg
Ratchet Teeth 72
Square Drive 3/8"
Ratchet Diameter 36mm
  • Supplied with a ½" sq. dr. adaptor
