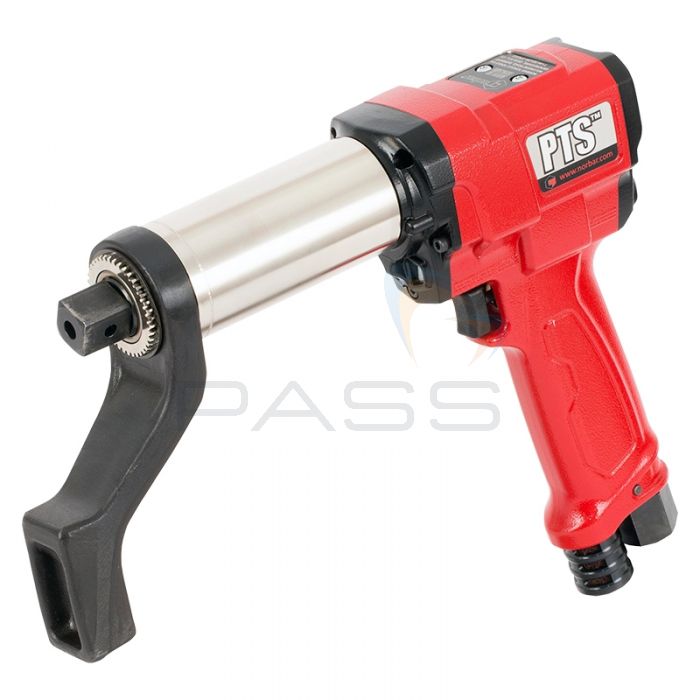

Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools

Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools
sku: NorbarPTS-52Series
MPN: 180241.B06

  • Suitable for tightening and untightening bolts and providing a continuous source of high torque
  • Quiet, non-impacting, easy-to-operate stall torque tools
  • Available in two models with different ranges

Call for Price
Contact us for a price
01642 931329 or Contact Us
Description

Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools Details

The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools can be used for a wide variety of bolting and non-bolting applications. These tools are suitable for tightening and untightening bolts with diameters of up to 150mm, they can be used to adjust the following:

  • Wheel nuts on lorries, buses and large machinery
  • Structural steelwork
  • High-pressure joints such as pipelines, boiler feed pumps and pressure vessels
  • Engine head bolts
  • Injector heads on plastic injection moulding machines
  • Heat exchangers
  • Chassis and suspension bolts during the production of heavy vehicles

These instruments are also of particular use during the following processes which require a continuous source of high torque:

  • Ball valve operation
  • Powering wagons and gantries
  • Barring of large diesel engines (turning the crankshaft) during build
  • Weld testing using torque tests
  • Roller adjustment in steel mills and paper mills
  • Valving of gas bottles

The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools are available in two models with different ranges; please see the table below for further details.

Model Code Model Name N.m Range lbf.ft Range
NOR-180241.B06 Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tool, 100-500 N.m, 74-370 lbf.ft 100 - 500 74 - 370
NOR-180242.B06 Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tool, 160-800 N.m, 118-590 lbf.ft 160 - 800 118 - 590

The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools include an efficient air motor contained within an accurate torque tool. These instruments feature a pistol-grip handle ensuring that they are easy to handle. The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools also feature easily accessible switches for forward and reverse operation, again adding to their ease of operation.

Moreover, these instruments have been designed to ensure a better power-to-weight ratio and are up to 2.5 kg lighter than Norbar’s PT-model equivalents. The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools are also up to 60% faster than Norbar’s PT-72 models. To this end, they feature an air coupling design optimised for rapid, as well as safe, operation, this makes the Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools ideal for fast bolt rundown.

Also adding to the safety of these instruments is their directional exhaust barrels which send exhausts away from the operator. These instruments have also been designed to limit sound pressure levels to between 77 dB(A) and 79 dB(A) (sound emission values have been determined in accordance with BS EN ISO 11148-6), thereby reducing the level of protection required by the user. Furthermore, in the interests of safety and ease-of-operation, vibration levels have also been kept low, 0.343 m/s²; this also ensures that the Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools are non-impacting adding to their accuracy and reliability.

The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools will stall repeatedly to within ±5% of the reading (at 20 to 100% of the instrument’s range).

Finally, the Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools are supplied with steel reactions as standard; however, these instruments may be purchased with bespoke reactions; please contact our sales team PRIOR to purchase for details. These tools are also compatible with the accessories available for Norbar’s PTM and EvoTorque® models and feature a replaceable square drive. This improves their practicality, adaptability and longevity.

The Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools are safe, simple-to-use and speedy instruments suitable for both tightening and untightening bolts, as well as providing a source of continuous torque.

Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools Key Features

  • Suitable for a wide variety of bolting and non-bolting applications
  • Tighten and untighten bolts with diameters of up to 150mm
  • Can be used to provide a continuous source of high torque
  • Available in two models with different ranges
  • Includes an efficient air motor contained within an accurate torque tool
  • Easily accessible switch for forward and reverse operation
  • Good power-to-weight ratio
  • 2.5kg lighter than the equivalent Norbar PT models
  • 60% faster than Norbar’s PT-72 models
  • Air coupling design for rapidity and safety
  • Ideal for fast bolt rundown
  • Directional exhaust barrel sends exhausts away from the operator
  • Sound pressure levels are between 77dB(A) and 79 dB(A) reducing the amount of protection required by the user
  • Sound emission values are determined in accordance with BS EN ISO 11148-6
  • Low vibration levels: 0.343 m/s²
  • Low vibration levels improve the tool’s safety and ease of operation
  • Low vibration levels ensure the tools are non-impacting adding to their accuracy and reliability
  • Stall repeatedly to ±5% of the reading (at 20 to 100% of the tool’s range)
  • Supplied with steel reactions as standard
  • Can be purchased with bespoke reactions (please contact our sales team PRIOR to purchase)
  • Compatible with the accessories for Norbar’s PTM and EvoTorque® ranges
  • Replaceable square drive
  • Practical, adaptable and long lasting
  • Safe, simple-to-use and speedy

What’s Included?

  • Your Choice of Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tool
  • Calibration Certificate
Technical Specs

Part Code: 180241.B06

Norbar PTS™ 52 Series Bi-directional Pneutorque Stall Torque Tools Technical Specifications

Specification NOR-180241.B06 NOR-180242.B06
Square Size 3/4"
Max Air Pressure 6.5 bar
Tool Weight 4.2 kg
Reaction Plate Weight 0.85 kg
Free Speed 35.5 rpm 25.7 rpm
