Seaward PV:1525 Solar PV Tester Kit
Free Tyre Inflator (Spend £500+)
Free Gift
- SS200LR Irradiance Meter
- PV:1500 Clamp (Wireless Clamp Meter)
- Solar Panel Clamp
SKU
601A910
MPN
601A910
The Seaward Solar PV:1525 supports testing in systems up to 1500V DC and 25A. It provides safety and performance checks, including ground continuity, insulation resistance, open-circuit voltage, and short-circuit current measurements. For further information, please visit our Seaward PV:1525 Unit Only listing.
PV1525 | Next Level Solar Testing Starts with the PV:1525
Key Features
- PV String Open Circuit Voltage Measurement up to 1500V DC
- PV String short-circuit current up to 25A DC
- Insulation Resistance voltage up to 1500V DC
- Bluetooth data transfer to the new PV Mobile App
- Wireless Updates - Firmware changes can be applied to the device via the App
- Intuitive Colour Display
- Illuminated Function Buttons allow for guided navigation and testing
- Internal Memory for results storage
- Manual Mode for Diagnostic Testing

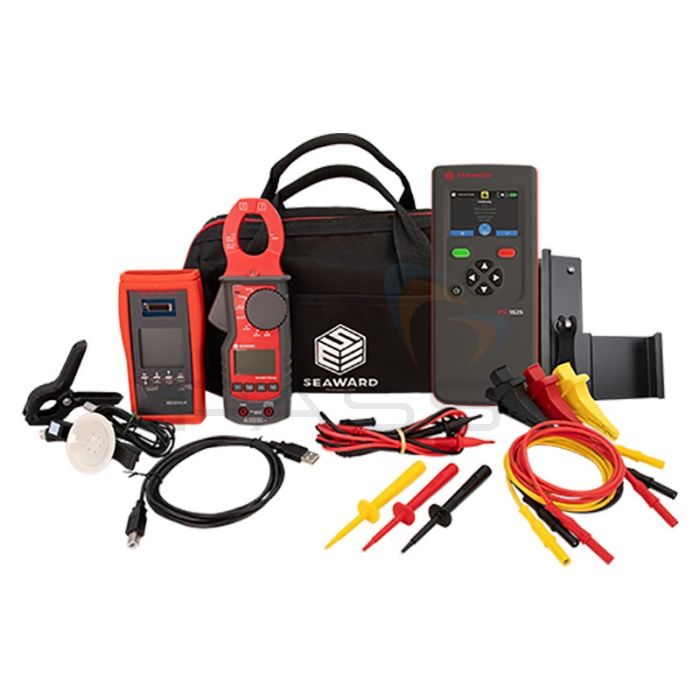

What's Included?
- PV:1525 instrument
- Carry Case
- Set 4mm Test Probes - Red, Black and Yellow (With detachable Clips)
- Set Instrument to MC4 Test Leads - Yellow and Black
- LiPo Battery Pack
- Battery Charger
- Printed QSG
- SS200LR Irradiance Meter
- PV:1500 Clamp (Wireless Clamp Meter)
- Solar Panel Clamp
- Solar Certs
Kit Comparison Chart
| Seaward PV:1525 Unit Only | Seaward PV:1525 Kit | |
| Seaward PV:1525 Unit | ✓ | ✓ |
| Set 4mm Test Probes: Red, Black and Yellow (with detachable clips) | ✓ | ✓ |
| Set Instrument to MC4 Test Leads - Yellow and Black | ✓ | ✓ |
| LiPo Battery Pack | ✓ | ✓ |
| Battery Charger | ✓ | ✓ |
| Carry Case | - | ✓ |
| Quick Start Guide | ✓ | ✓ |
| SS200LR Irradiance Meter | - | ✓ |
| PV:1500 Clamp (Wireless Clamp Meter) | - | ✓ |
| Solar Panel Clamp | - | ✓ |
| Seaward SolarCert Software License | - | ✓ |
| UKAS Calibration Certificate | ✓ | ✓ |
£2,390.00
£2,868.00 inc vat
In Stock:
Available Next Working Day*
Free Tyre Inflator (Spend £500+)
Find Out More
60 Day Returns
Offers
Free Tyre Inflator (Spend £500+)
Automatically adds to your basket when the total exceeds £500+ (ex VAT). Limited Stock. More details here.
- PASS MC4 Solar Panel Crimping Tool Kit (27 Pieces) - PASS-SOLAR-CTK, typically £39.00
Technical Information
Specification
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0VDC - 1500VDC |
| Measuring Range | 5.0VDC - 1500VDC |
| Resolution | 0.1VDC maximum |
| Short Circuit Current Measurement (PV Terminals) | |
| Display Range | 0.00ADC - 25.00ADC |
| Measuring Range | 0.50ADC - 25.00ADC |
| Maximum Power | 37.5kW |
| Resolution | 0.01 ADC maximum |
| IV Curve Measurement (PV:1525-IV Only) | |
| Number of Test Points | Dynamic |
| Max Power | Depending upon Irradiance and Panel Technology |
| Earth Continuity / Resistance Measurement (4mm Terminals) | |
| Test Voltage Open Circuit | >4VDC, nominal |
| Test Current into 2Ω | >200mA |
| Display Range | 0.00Ω - 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω - 199Ω |
| Resolution | 0.01Ω maximum |
| Test Leads Zero | Zero up to 10Ω |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat Tests as per IEC61557-4 | Approx 4000 1-second tests |
| Insulation Resistance Measurement (4mm Terminals) | |
| Test Voltage Open Circuit | 250, 500, 1000, 1500V (as per IEC61557-2) |
| Test Current Short Circuit | 2mA |
| Display Range | 0.05MΩ - 300MΩ |
| Measuring Range (EN61557-2) | 0.05MΩ - 300MΩ |
| Resolution | 0.01MΩ Maximum |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat Tests as per IEC61557-4 | Approx 4000 1-second tests |
| RPE Voltage Measurement (4mm Terminals) | |
| Display Range | 30V - 440VAC/DC |
| Voltage Measuring Range | 30V - 440VDC 30V- 440VAC 50-60Hz |
| Resolution | 1V |
| Operating Current (Wireless via PV:1500 Clamp) | |
| Display Range | 0.1A - 40.0A |
| Current Measuring Range | 0.1A - 40.0A DC 0.1A -40.0A AC 50-60Hz |
| Operating Power (PV Terminals & wireless using PV:1500 Clamp) | |
| Display Range | 0.00kW - 40kW |
| Measuring Range | 0.50kW - 40kW |
| Resolution | 0.01kW |
| General | |
| Weight | 1kg / 2.2lb |
| Dimensions | 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in |
| Display | 3.5-inch colour display with Backlight |
| Power Source | 11.55V 2930mAh LiPo Battery |
| Auto Power Down | User Configurable |
| Onboard Memory | 1000 Slots |
