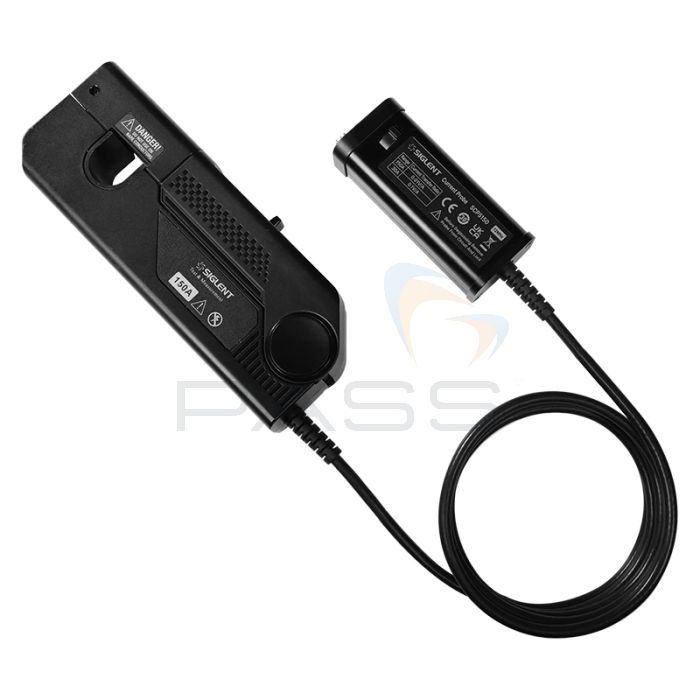

Siglent SCP5000 Series Current Probe - 2, 12, 50, 100 MHz
- High bandwidth
- Accuracy up to 1%
- Powered by oscilloscope via SAPBUS
SKU
SCP5000-SERIES
These Siglent SCP5000 series current probes are wide-band width DC / AC active current probes. They have an accuracy of up to 1% and low circuit insertion loss they also feature a high bandwidth, are fast, and accurately capture the current wave. They are compatible with any oscilloscope having a high-impedance SAPBUS input.
| Bandwidth | Maximum Continuous Current | Peak Current | Switching Ratio | Accuracy | |
|---|---|---|---|---|---|
| SCP5500 | 2 MHz | 500 Arms | 750A | 75 A/500 A | 75 A(±1%±10 mA); 500 A(±1%±100 mA) |
| SCP5150 | 12 MHz | 150 Arms | 300A | 30 A/150 A | 30 A(±1%±10 mA); 150 A(±1%±100 mA) |
| SCP5030 | 50 MHz | 30 Arms | 50A | 5 A/30 A | 5 A(±1%±1 mA); 30 A(±1%±10 mA) |
| SCP5030A | 100 MHz | 30 Arms | 50A | 5 A/30 A | 5 A(±1%±1 mA); 30 A(±1%±10 mA) |
Offers
Free Insulated Screwdrivers
- CK Tools T4897 C.K VDE Precision Screwdriver Set - T4897, typically £27.35
Technical Information
Additional Information
SKU
SCP5000-SERIES
Siglent SCP5000 Series Current Probe - 2, 12, 50, 100 MHz
£1,880.00
£2,256.00 inc vat
£1,880.00
£2,256.00 inc vat
