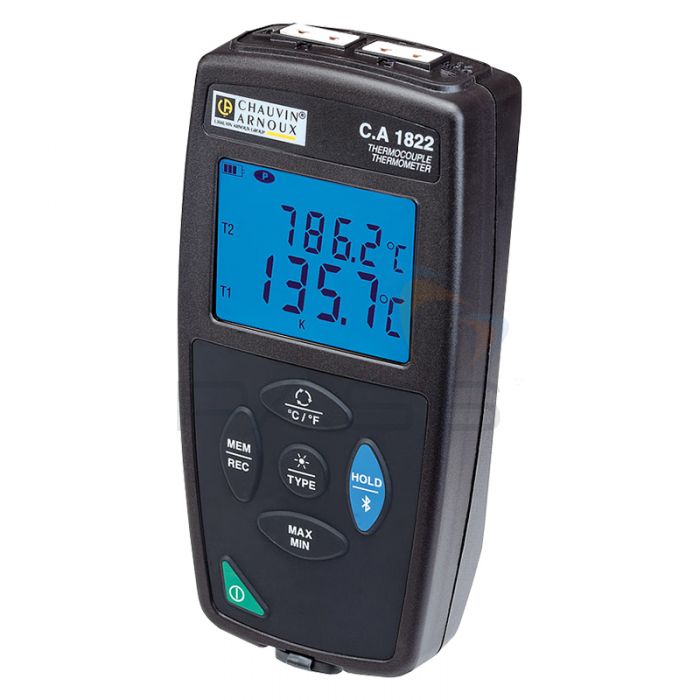

Chauvin Arnoux CA1822 Datalogging Digital Thermometer - 2 Inputs
- Measures and logs temperature levels
- Compatible with several different thermocouple probe types
- 2 inputs - measure from two points at the same time
SKU
P01654822
MPN
P01654822
Please note that this digital thermometer does not include any measurement probes as standard (any probes shown in images are for illustrative purposes only). We stock a wide range of thermocouple and temperature probes which you can view by clicking this link.
Measure and log temperature levels from two points at the same time with this dual-input, datalogging digital thermometer from Chauvin Arnoux.
Compatible with type J, K, T, N, E, R and S thermocouple temperature probes, you can use the Chauvin Arnoux CA1822 in a wide variety of temperature applications ranging from measuring the temperature of air to testing liquid temperatures. The capabilities of the thermometer depend entirely on the probe you use, and thanks to universal compatibility with most thermocouple probes, applications for the CA1822 digital thermometer are nearly endless.
The Chauvin Arnoux CA1822 is a datalogging digital thermometer - you can configure the unit to log at any point from every minute up to 2 hours, with the ability to also set the start and end date for recording. All values are stored directly on the thermometer and can be downloaded into your PC and into Chauvin Arnoux's Data Logger Transfer software via USB or Bluetooth wireless connection. It's also possible to configure high and low alarms using the software.
You can even leave the CA1822 mounted completely hands-free to a metallic surface thanks to a built-in magnet! There's also a built-in backlit screen, up to 3 year recording battery life, switchable Celsius/Fahrenheit measurement modes, MIN/MAX, data hold and a configurable automatic power off facility all included.
Chauvin Arnoux CA1822 Datalogging Digital Thermometer Key Features
- Measure and store temperature values from two points at the same time
- Compatible with type J, K, T, N, E, R and S thermocouples
- Compact, magnetised design for hands-free mounting on a metallic surface
- User-configurable logging - set the start and end dates/time, the logging rate and high/low alarms
- Records up to 1 million individual temperature records
- Battery life of up to 3 years in recording mode
- Download and interact with your data on PC using the free software
- Wide, backlit LCD display for easy temperature readings on both channels
- Simple interface - 1 key for 1 function
- Communicate with a PC using USB connection or with Bluetooth wireless transmission
- MIN/MAX mode calculates the minimum and maximum values taken over a period of time
- Data hold function freezes current reading shown on the screen
- Configurable automatic power off to save battery life
What's Included?
- Chauvin Arnoux CA1822 Thermometer
- Carrying Bag
- 3 x 1.5V AA Alkaline Batteries
- USB Cable
- Test Report
- Quick Startup Guide
Technical Information
Specification
Chauvin Arnoux CA1822 Technical Specifications
| Measurements | |
|---|---|
| Measurement Range | J - 210 to + 1,200 °C -346 to + 2,192 °F K - 200 to + 1,372 °C -328 to + 2,501 °F T - 250 to + 400 °C -418 to + 752 °F N - 200 to + 1,300 °C -328 to + 2,372 °F E - 150 to + 950 °C -238 to + 1,742 °F R - 0 to + 1,767 °C 32 to + 3,212 °F S - 0 to + 1,767 °C 32 to + 3,212 °F |
| Resolution | Display in °C: ø < 1,000 °C : 0.1 °C and ø ≥ 1,000°C : 1 °C Display in °F: ø < 1,000 °F : 0.1 °F and ø ≥ 1,000°F : 1 °F |
| Intrinsic Uncertainty in Degrees C | (J. K. T. N. E) ø ≤ - 100°C ± (0.2% Reading + 0.6°C) - 100°C < ø ≤ + 100°C ± (0.15% R + 0.6°C) + 100°C < ø ± (0.1% R + 0.6°C) (R. S) ø ≤ + 100°C ± (0.15% R + 1.0°C) + 100°C < ø ± (0.1% R + 1.0°C) |
| Functions | |
| Recording | Manual start/stop on the product Short press on MEM: spot recording / Long press on REC: recording at the rate of the current mode Programmed recording Start date, recording rate (interval from 1 minute to 2 hours) and end date can be customized with the PC software |
| Alarms | Alarm thresholds set using the software. Visual alert on the product in the event of an overrun Recording can be triggered on alarm thresholds |
| Data Storage | More than 1 million points |
| MIN/MAX/HOLD | Yes |
| Units | Celsius or Fahrenheit (selectable) |
| Backlight | Yes |
| Automatic Power Off | Yes (configurable) |
| Power Supply | |
| Type | 3 x 1.5V AA / LR6 alkaline batteries Mains connection possible using optional mains/micro USB adapter |
| Battery Life | 1000 hours (portable mode) 3 years for recording (assumes 15 minute measurement interval) |
| Physical Specifications | |
| Interfaces | 2: Bluetooth and USB |
| Fixations |
Casing equipped with a magnet, a wall-mount system and a slot for suspension of the thermometer. |
| Connections | Compensated miniature female connectors |
| Dimensions | 150 x 72 x 32mm |
| Weight | 260g (with batteries) |
| Ingress Protection | IP54 (casing) |
| Product Operating Range | Temperature from -10 to +60°C Humidity from 10 to 90% RH |
| Other Specifications | |
| Windows Data Logger Transfer Software Functions | Real-time mode Automatic report generation in Word format Data format compatible with Dataview software Graph or value-table presentation Data export in graph or Excel table format |
| Warranty | 2 years |
Document Downloads
Additional Information
SKU
P01654822
Manufacturer Part Code
P01654822
Country of Origin
France
