DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester
DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester
Designed for service engineers offering EV installation, the DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester offers an array of functions critical to ensuring the safe verification of EVSE charge points. These include a 6mA pure DC test for RDC-DD verification, as well as a full EV auto test sequence for verifying the DC protection provided by the EV charger and the type A RCD protection.
Building on the capabilities of the DiLog DL9120, the DiLog DL9130EV includes Rmax and Zmax measurement features in addition to the functions inherited from its predecessor. It offers a comprehensive array of measurement functions, including:
- Rmax: automatically captures the maximum R1+R2/R2 continuity test reading which is indicated on the secondary display
- Zmax: records the maximum Zs test taken during the measurement period
- Intelligent auto-detecting two- or three-wire high current loop test

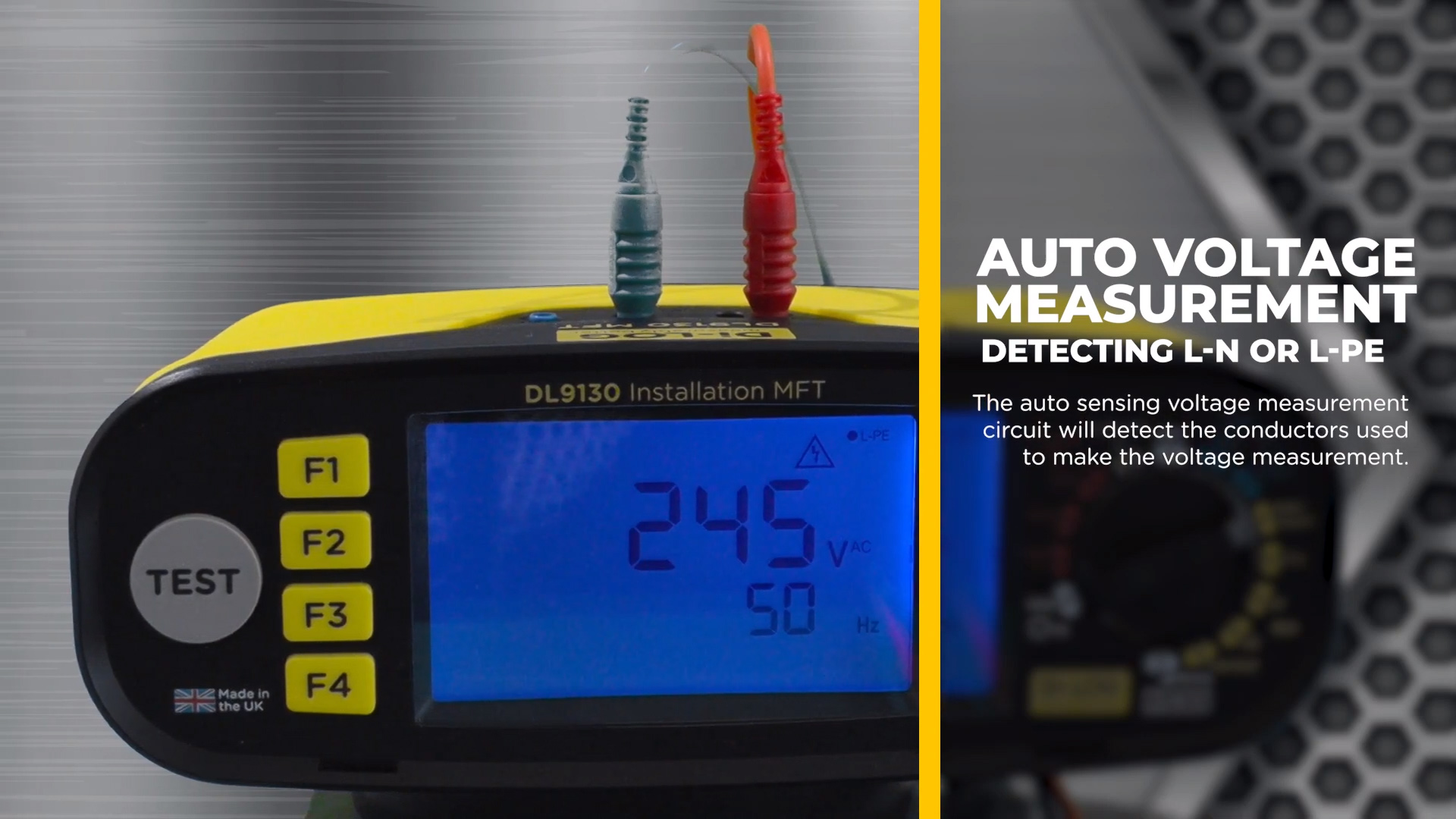

- Loop Impedance/PSCC: the unique auto-start RCD-LOC XLT loop test principle will not trip any RCD or RCBO
- Auto start loop and continuity tests with a secondary display to capture the recorded result and a null facility to zero out lead resistance
- Type AC, A, B & selective (S) RCD testing
- Variable RCD test: dial-in bespoke mA values
- Auto RCD testing: trip time, trip current, autotest, and ramp current
- 250V, 500V, and 1000V insulation tests
- Phase-to-phase loop with phase rotation test: indicates the correct phase sequence
- Phase rotation test: indicates the correct phase sequence
- Integrated socket polarity test

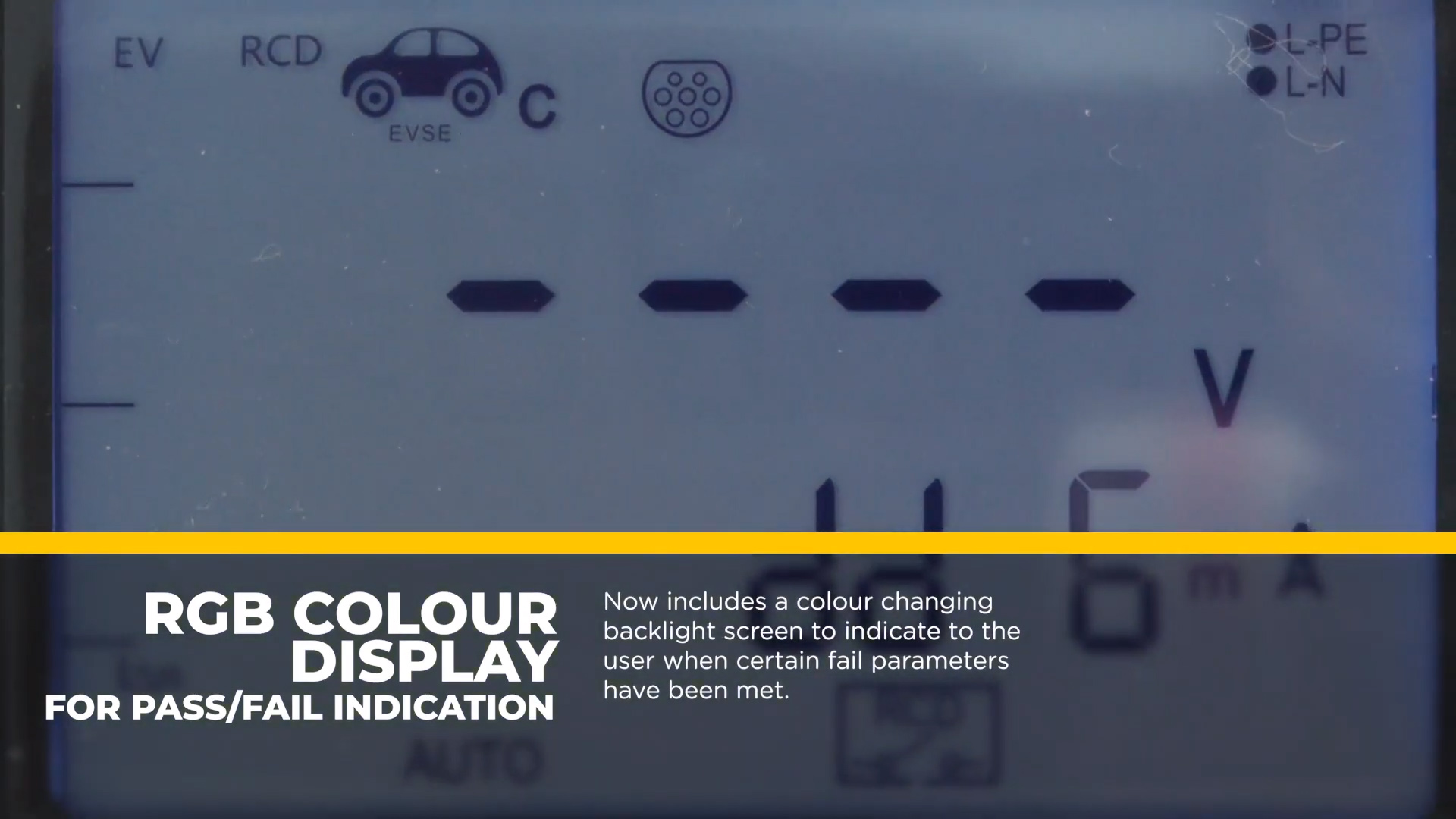

Measurements are indicated on the colour LCD with a colour-changing RGB screen for indicating PASS/FAIL results.
The DiLog MFT is compliant with BS EN 61557 safety and performance requirements and is fully protected against damage when accidentally connected across phases.
The DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester is a comprehensive MFT suitable for verifying the safety of EVSE charge points.
Videos
Introduction
How to Use the DiLog DL9130EV Multifunction Tester to Test EV Charging Points
Key Features
DL9130EV MFT Key Feature Corporate Slideshow
Key Features
- A multifunction installation tester with an array of functions critical to ensuring the safe verification of EVSE charge points
- Designed for service engineers offering EV installation
- 6mA pure DC test for RDC-DD verification
- Full EV auto-test sequence
- Rmax
- Zmax
- Intelligent auto-detecting two- or three-wire high-current loop test
- Loop impedance/PSCC
- Auto start loop and continuity tests with a null facility
- Type AC, A, B & selective (S) RCD testing
- Variable RCD test
- Auto RCD testing
- 250V, 500V, and 1000V insulation tests
- Phase-to-phase loop with phase rotation test
- Phase rotation test
- Integrated socket polarity test
- Colour LCD
- Colour-changing RGB screen for indicating PASS/FAIL results
- Compliant with BS EN 61557 safety and performance requirements
- Fully protected against damage when accidentally connected across phases
- A comprehensive MFT suitable for verifying the safety of EVSE charge points
What’s Included?
- DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester
- Padded Neck Strap
- Mains Lead
- 2m Blue Test Lead
- 2m Red Test Lead
- 2m Green Test Lead
- Blue Crocodile Clip
- Red Crocodile Clip
- Green Crocodile Clip
- Remote Probe
- 6x 1.5V Batteries
- Toolbox-Style Carry Case
- Operating Instruction Manual
DiLog Multifunction Testers - DL9120 vs DL9130EV Comparison
| Model | DL9120 | DL9130EV |
|---|---|---|
| Continuity Test | Yes | |
| 15 mA/200mA Selectable Current | No | Yes |
| R Max (Max R1+R2 recording) | No | Yes |
| Insulation Test | 250V, 500V, 1000V | 250V, 500V, 1000V |
| Loop Test (3-wire no-trip) | Yes | |
| 2-Wire Loop Test | Yes | |
| Auto Start Loop & Continuity | Yes | |
| Auto Start PFC/PSC (L-PE/L-N) | Yes | |
| Z Max | No | Yes |
| PFC and PSC Fault Current(L-PE/L-N) | Yes | |
| Phase-Phase Line Test (L-L) | Yes | |
| RCD Test (AC, A, S-type) | Yes | |
| Auto RCD Test | Yes | |
| RCD Ramp Test | Yes | |
| 6 mA RDC-CC (EVSE) | No | Yes |
| Auto EV RCD Test Sequence | No | Yes |
| RCD Test Type B | Yes | |
| Phase Rotation | Yes | |
| Intelligent Full Range Protection | Yes | |
| Colour RGB display | Yes | |
| Remote Test Probe Include | No | Yes |
| SKU | DL9130EV |
|---|---|
| Manufacturer Part Code | DL9130EV |
