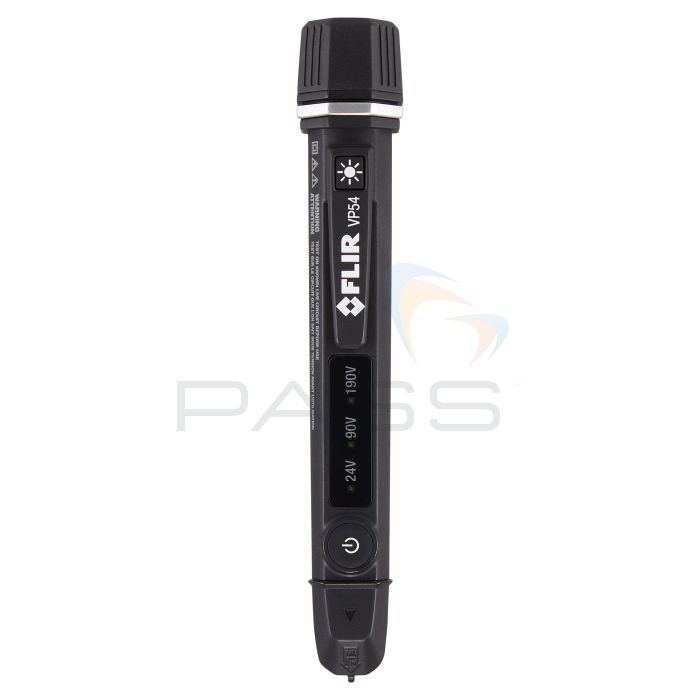

FLIR VP54 Non-Contact Voltage Detector
- 3 sensitivity ranges
- Vibration and sound feedback alarms
- Multi-colour LED alarm indicators
SKU
VP54
MPN
VP54
The FLIR VP54 identifies live electrical circuits without direct contact, detecting AC voltage through insulation. The VP54 includes a built-in LED worklight with vibration and audible alerts, and its sensitivity can be adjusted to suit different applications.
Verify Voltage Safely | VP54 Triple Alarm CAT IV Non-Contact Voltage Detector with Flashlight |
Key Features
- Vibration and sound feedback alarms
- Multi-colour LED alarm indicators
- Powerful LED flashlight
- Dual-LED illuminator at probe tip
- On/Off button with auto power off
- 3-meter drop tested
- CAT IV-1000V Safety Rating
- FLIR 3-year warranty
- Compliant with latest UL1436
- Differentiate live wires from neutral and ground wires
- Stronger clip design
- 3 sensitivity ranges
- Never miss voltage presence with vibration, sound, and visual alarms—even in dark or noisy areas
- See the target area clearly in poor lighting conditions with the bright flashlight and tip light
- Accurately differentiate live wires from neutral or ground in outlets
- Designed to comply with the latest UL1436 Non-contact Voltage Detector safety regulation
- Rugged and durable, built to withstand a 3 m (9.8 ft) drop
- Reliable detection of voltage on exposed conductors, through insulation, and inside panels, switches, and outlets
- Ideal for tracing live wires and mapping circuits during troubleshooting
What's Included?
- Voltage Detector
- Quick Start Guide
- AAA Batteries x 2
Technical Information
Specification
| AC Voltage Ranges | 90 to 1000 V AC (default, solid green light) 190 to 1000 V AC (default, solid green light) 24 to 1000 V AC (default, solid green light) |
|---|---|
| Category Rating | CAT IV-1000V |
| Frequency Range | 45 to 65 Hz |
| High Sensitivity Mode | 24 to 1000 V AC (default, solid green light) |
| Operating Temperature | -10°C to 50℃ (14°F to 122℉) |
| Storage Temperature | -20°C to 60℃ (-4°F to 140℉) |
| Drop Test | 3 m (9.8 ft) |
| Certifications | CE, ETL |
| FLIR Warranty | Limited 3-year |
| Alarm Notification | Sound, Flashing LED, Vibration |
| Dimensions (L x W x H) | 163 x 29.2 x 26.5 mm (6.4 x 1.15 x 1 in) |
| Flashlight | Yes |
| Tip Light | Yes |
| Battery Life | ~5 hours continuous (flashlight off) |
| Power Requirements | 2 x AAA alkaline batteries |
Document Downloads
FLIR VP54 Non-Contact Voltage Detector Datasheet
FLIR VP54 Non-Contact Voltage Detector Quick Start Guide
FLIR VP54 Non-Contact Voltage Detector User Manual
