Fluke 6500-2 PAT Tester-Premium PAT Kit w/ Barcode Scanner (Bundle 3)

Black Friday Free Gift (Spend £200+)
Free Gift
All Fluke Products
  • Our premium-grade PAT kit for the Fluke 6500-2, packed with accessories
  • Includes barcode scanner, software and all your PAT essentials like labels
  • Professional-grade downloadable PAT tester with internal memory storage
SKU
6500BUNDLE3
MPN
6500BUNDLE3

Read More

Fluke 6500-2 PAT Tester - Kit 3

Our biggest and best PAT kit for the Fluke 6500-2! Packed with all the equipment you'll need for PAT testing, this exclusive kit includes everything from Fluke's powerful downloadable 6500-2 PAT tester to, PAT labels, insulated screwdrivers, IEC/110V adapters and a barcode scanner and barcode labels.

Fluke 6500-2 PAT

The Fluke 6500-2 delivers a complete solution for any PAT testing professional. Capable of carrying out all necessary PAT tests, lightweight and with built-in memory, this tester makes sure that large-volume PAT testing is as simple as possible and that comprehensive records can be kept of all testing procedures.

An upgraded version of Fluke's 6200, the 6500-2 includes all of the features of the other unit but builds upon these functions, adding a number of unique abilities only found on this model. The most important of these is the built-in memory, allowing up to 1000 records to be stored directly on the device or even more records to be stored by inserting a flash memory card into the 6500. This data can then be downloaded to PC and interacted with further by using Fluke's software packages designed for use with PAT testers (sold separately)

A full QWERTY keyboard is also included, allowing adjustments to new and existing testing records that are already stored on the memory. The LCD screen includes full graphics of testing procedures to help speed up testing configurations.

The 6500-2 can be used to carry out L N mains volts, protective earth resistance (200mA and 25A), insulation at 500V DC, protective earth conductor current, touch current, substitute leakage current, appliance power, appliance load current, IEC lead and polarity testing. All functions come with defined settings which can be activated with the touch of a button or it is alternatively possible to configure testing procedures yourself.

Key Features

  • Lightweight durable design made for use in various different environments
  • Full QWERTY keyboard built into the unit allows adjustments to be made to stored testing records
  • Graphical LCD display integrated into the unit
  • One touch test initiation speeds up time taken to perform testing procedures
  • Pre-set PASS/FAIL limits
  • Adjust testing pass-fail limits to user specifications
  • Backlit screen
  • Integral site, location and description codes for faster data processing
  • Memory review facility
  • Download to PC
  • Large suite of testing procedures
  • IEC port
  • Mains socket port
  • Test lead port

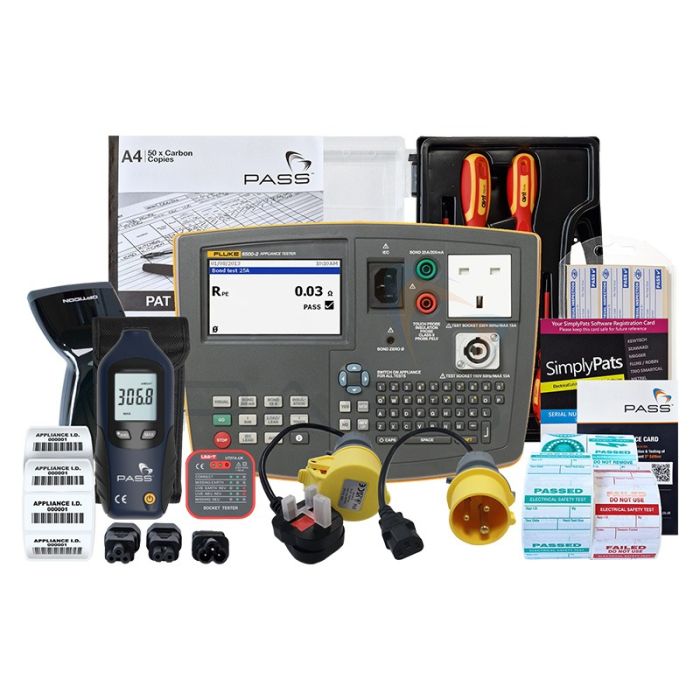

What's Included?

Inside, you will receive all of the following manufacturer-issued items:

  • Fluke 6500-2 PAT Tester
  • User Manual
  • Quick Reference Guide
  • Hard Carrying Case
  • Test Leads + Probe and Croc Clip
  • Mains Cord
  • USB Stick
  • USB Cable

We also add the following items for a reduced cost compared to purchasing separately:

  • UNI-T UT07A Socket Tester
  • CK Tools 5 Piece Insulated Screwdriver Set
  • eLearning PAT Testing Course - Includes Exam and Certificate
  • SimplyPats PAT Testing Software
  • Microwave Leakage Detector
  • IEC Adapter Set
  • 110V Adapter Set
  • 1000 x Passed PAT Testing Labels
  • 500 x Circular Passed PAT Testing Labels
  • 500 x Cable Wrap PAT Labels
  • 500 x Failed PAT Labels
  • Visual Inspection Labels
  • USB Barcode Scanner
  • 2000 x Barcode Labels

Fluke 6500-2 PAT Bundles

Take a look at the comparison chart below for a full breakdown of our Fluke 6500-2 PAT tester bundle packs.

Item  PAT Essentials Kit (Bundle 1) PAT Business Kit (Bundle 2)
PAT Premium Kit (Bundle 3)

UNI-T UT07A Socket Tester

Need to check if your sockets are working right? Just plug this in to a standard UK plug socket and if there's a problem, the socket tester will let you know about it!

(socket tester may vary depending on current stock)

 Yes  Yes Yes

CK Tools AV05050 Screwdriver Set

This bundle pack includes a set of 5 fully insulated electrical screwdrivers which are suitable for live electrical work to 1000V

Yes Yes Yes

eLearning PAT Testing Course - Includes Exam and Certificate

Gain a certificate of competency to carry out PAT testing in just two hours with our online PAT course and exam. Teams of staff may be trained by purchasing the course multiple times; each staff member will be assigned a unique activation code and login.

Yes Yes Yes

SimplyPats Manual PAT Testing Software

Keep a database of your PAT testing information on your PC and print reports with SimplyPats Manual software. Please note that this software is manual entry; you cannot download directly from the PAT tester, and you will need to type in records by hand.

No Yes Yes

Microwave Leakage Detector

It's common practice to check microwave radiation levels while you're PAT testing - use this portable, easy-to-use microwave leakage detector to do so

Yes Yes Yes

IEC Adapter Set

A special bundle pack with three IEC adapters, allowing you to use your PAT tester with various types of IEC cables and power supplies

Yes Yes Yes

110V Adapter Set

Use these two 110V connector leads to connect your PAT tester to 110V equipment commonly found on construction sites and similar applications

Yes Yes Yes

Passed PAT Testing Labels

A PAT essential! We include two 500 label rolls in your purchase, ensuring you have everything you need for labelling appliances after testing

Yes, 1000x Yes, 1000x Yes, 1000x

Circular Passed PAT Labels

Uniquely-designed passed PAT testing labels with circular design - ideal for smaller plugs or appliances where you can't easily fit other labels

Yes, 500x Yes, 1000x Yes, 1000x

PAT Testing Cable Wrap Labels

These labels wrap around cables, and are great for labelling appliance power leads where you can't fix a suitable label

Yes, 500x Yes, 500x Yes, 500x

Failed PAT Testing Labels

You won't need these very often, but if an appliance ever fails testing you should place one of these labels and take it out of use for repair or replacement

Yes, 500x Yes, 500x Yes, 500x

Visual Inspection Labels

You should check your appliances over for obvious signs of damage before testing. Look for frayed wires, loose connection and damaged plugs, then place one of these labels on if the appliance passes

No Yes Yes

Barcode Scanner

Easily speed up your record keeping with this USB barcode scanner for use with your Fluke 6500-2!

No No Yes

Barcode Labels

Use these with the included barcode scanner to speed up your testing times

No No Yes, 2000x
£1,610.25
£1,932.30 inc vat
Save £85 £1,695
Free Delivery*
3 in Stock: Available Next Working Day*
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
Black Friday Free Gift (Spend £200+) View 2 Offers


60 Day Returns
Ask a Question or Price Match
PASS The Complete Guide to EET (PAT) Testing, 5th Edition
FREE £19.99
SKU PASS-PAT-HB
PASS The Complete Guide to EET (PAT) Testing, 5th Edition
  • Covers 5th Edition IET Code of Practice updates
  • 129 page in-depth PAT/EET guide
  • Easy to understand with lots of examples
Black Friday Fantastic Deals End In 00days00hrs00mins00secs Shop the Deals How Can We Help? Got a question? Our team's ready to help. Looking for something specific? We carry thousands more products than you see here. Ask Our Experts A Question

Offers

Black Friday Free Gift (Spend £200+)

Get a free gift this Black! Even better, this bonus stacks with any other offer.

  • Spend £200+ get a free Head Torch OR
  • Spend £500+ get a free Digital Tyre Inflator

Free item will automatically add to your basket. Limited Stock. Offer is based on ex VAT basket total after discounts and before shipping costs. See Black Friday Offers for details.

Remember: We will not be beaten on price. Contact us if you've seen a cheaper price.

Claim a Free Tool From Fluke

Buy a qualifying Fluke Industrial, Fluke Networks or Beha-Amprobe product and earn 1 point for every £1 spent. Redeem points for rewards straight away or save for higher-value gifts.

Offer runs 1 September–31 December 2026. Claims are made through Fluke and offer works in conjuction with our other offers.

See free gift choice & find out more

Free Complete Guide to EET (PAT) Testing
  • PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £19.99
Technical Information
Specification

Fluke 6500 Technical Specifications



 The accuracy specification for the display range is defined as ± (%reading + digit counts) at 23 °C ± 5 °C, ≤ 75 % RH. Between 0 °C and 18 °C and between 28 °C and 40 °C, accuracy specifications may degrade by 0.1 x (accuracy specification) per °C.

 The measurement range meets the service operating errors specified in EN61557-1: 1997, EN61557-2: 1997 , EN61557-4: 1997.
Power-on Test

 The test indicates reversed L-N, missing PE, and measures the mains voltage and frequency.
Display range:  90 V to 264 V
Accuracy at 50 Hz:  ± (2% + 3 counts)
Resolution:  0.1 V (1 V - model 6200)
Input impedance  > 1 MΩ // 2.2 nF
Maximum input mains voltage:  300 V
Earth Bond Test (Rpe)
Display range:  0 to 19.99 Ω
Accuracy (after Bond Test zeroing):  ± (2.5% + 4 counts)
Resolution:  0.01 Ω
Test current:  200 mA AC -0% +40% into 1.99 Ω

 25 A AC ± 20% into 25 mΩ at 230 V
Open circuit voltage:  > 4 V AC, < 24 V AC
Bond test zeroing:  can subtract up to 1.99 Ω
Insulation Test (Riso)
Display range:  0 to 299 MΩ
Accuracy:  ± (5% + 2 counts) from 0.1 to 300 MΩ
Resolution:  0.01 MΩ (0 to 19.99 MΩ)

 0.1 MΩ (20 to 199.9 MΩ)

 1 MΩ (200 to 299 MΩ)
Test voltage:  500 V DC -0% + 10% at 500 kΩ load
Test current:  > 1 mA at 500 kΩ load, < 15 mA at 0 Ω
Auto discharge time:  < 0.5 s for 1 μF
Max. capacitive load:  operational up to 1 μF
Touch Current Test
Display range:  0 to 1.99 mA AC
Accuracy:  ± (4% + 2 counts)
Resolution:  0.01 mA
Internal resistance (via probe):  2 kΩ
Measuring method:  probe

 The appliance under test is energized at mains potential.
Substitute Leakage Current Test
Display range:  0 to 19.99 mA AC
Accuracy:  ± (2.5% + 3 counts)
Resolution:  0.01 mA
Test voltage:  35 V AC ± 20%
Load/Leakage Test: Load Current
Display range:  0 to 13 A
Accuracy:  ± (4% + 2 counts)
Resolution:  0.1 A

 The appliance under test is energized at mains potential.
Load/Leakage Test: Load Power
Display range:  0 to 999 VA

 1.0 kVA to 3.2 kVA
Accuracy:  ± (5% + 3 counts)
Resolution:  1 VA (0 to 999 VA)

 0.1 kVA (1.0 kVA to 3.2 kVA)

 The appliance under test is energized at mains potential.
Load/Leakage Test: Leakage Current
Display range:  0 to 19.99 mA
Accuracy:  ± (4% + 4 counts)
Resolution:  0.01 mA

 The appliance under test is energized at mains potential.
PELV Test
Accuracy at 50 Hz:  ± (2% + 3 counts)
Overload protection:  300 Vrms
Warning threshold:  25 Vrms
Environmental Specifications
Operating Temperature

 0 to 40 °C
Relative Humidity

 non condensing < 10 °C

 95% from 10 to 30 °C

 75% from 30 to 40 °C
Safety Specifications
Safety Rating

 EN61010-1 CAT II, 300 V
Mechanical & General Specifications
Size

 200 mm (L) x 275 mm (W) x 100 mm (H)
Weight

 3 kg
Power Supply

 V + 10 % - 15 %, 50 Hz ± 2 %
Power Consumption (Tester)

 13 W typical (idle)

 60 W max. during 25A Bond Test
Storage
Temperature:  -10 to 60 °C
Corrosion:  70 °C @ 95 % RH for 5 days max.
Operating Altitude

 0 up to 2000 m
Sealing

 IP-40 (enclosure), IP-20 (connectors)
EMC

 complies with EN61326-1, criteria B
EMI Immunity

 3 V/m
