The Kewtech EZYPAT PAT Tester – PAT Essentials Kit (Bundle 1) consists of Kewtech’s EZYPAT PAT Tester (supplied with the manufacturer’s accessories as standard) and an array of useful, additional PAT testing accessories. For further information regarding the EZYPAT PAT Tester, please see the descriptions below.
Kewtech EZYPAT PAT Tester and Standard Manufacturer’s Accessories Description
The Kewtech EZYPAT PAT Tester is a battery operated PAT tester optimised for performing manual dead tests on Class I and Class II appliances without electronic on/off switches, as well as extension leads. To this end it includes the following testing capabilities:
- 200mA continuity
- 1-second quick check continuity test
- 5-second continuity test
- 250V DC insulation test
- 500V DC insulation test
- Substitute leakage test
- Polarity check
- Extension lead test
The Kewtech EZYPAT PAT Tester also features safety checks such as an appliance status pre-check which allows the user to ascertain whether the appliance under investigation is powered on or off prior to commencing the necessary PAT testing routine. PAT testing sequences relevant to Class I and Class II, as well as extension leads are pre-programmed into the Kewtech EZYPAT PAT Tester and can be accessed and run via the clearly labelled function buttons.
Further to this, the Kewtech EZYPAT PAT Tester’s ability to perform 250V DC insulation tests and low current earth continuity tests ensure that it is IT safe, adding to its scope-for-use.
Another useful feature present on the Kewtech EZYPAT PAT Tester is its Test Lead Null setting which can be engaged to ensure that the results of insulation tests are not affected by the resistance of test leads and are therefore more accurate.
PASS or FAIL results are indicated via the Kewtech EZYPAT PAT Tester’s large, backlit display which turns green when a test has been passed, and red when one has been failed. Also adding to this instrument’s ease-of-use is its ergonomic, lightweight and adaptable design. It is supplied with an array of standard manufacturer’s accessories which allow the user to adapt the instrument to conduct an array of tests in a variety of environments. Included with the Kewtech EZYPAT PAT Tester is an extension lead adapter, an earth continuity test lead with a probe and a crocodile clip.
Finally, the Kewtech EZYPAT PAT Tester can perform up to 1400 tests before it will become necessary to replace the batteries. This entry-level model in Kewtech’s EZYPAT/SMARTPAT range is a versatile, efficient and convenient tester that is ideal for conducting manual dead tests on Class I and Class II appliances without electronic on/off switches, as well as extension leads.
Kewtech EZYPAT PAT Tester Key Features
- Optimised for performing manual dead tests on Class I and Class II appliances without electronic on/off switches, as well as extension leads
- 200mA continuity
- 1-second quick check continuity test
- 5-second continuity test
- 250V DC insulation test
- 500V DC insulation test
- Substitute leakage test
- Polarity check
- Extension lead test
- Appliance pre-check
- Pre-programmed Class I, Class II and extension lead test sequences
- Function buttons for automatically performing the above pre-programmed test sequences
- IT safe
- Test Lead Null setting
- Large, backlit display
- Display turns green to indicate a PASS
- Display turns red to indicate a FAIL
- Supplied with an extension lead adapter, an earth continuity test lead with a probe and a crocodile clip
- Ergonomic, lightweight, adaptable design
- Perform up to 1400 tests before replacing the battery
- Can be used with the Kewtech KEWPAT App to collect data and create reports manually
- The Kewtech KEWPAT App is available for free from the App Store (iOS) and Google Play (Android)
- Entry-level model in Kewtech’s EZYPAT/ SMARTPAT range
- Versatile, efficient and convenient tester
What’s Included in the Kewtech EZYPAT PAT Tester – PAT Essentials Kit (Bundle 1)?
- Kewtech EZYPAT PAT Tester
- EZYLEAD Extension Lead Adapter (supplied by Kewtech)
- EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip (supplied by Kewtech)
- Carry Bag with Strap (supplied by Kewtech)
- Quick Start Guide (supplied by Kewtech)
- Deluxe Carrying Case
- Socket Tester
- eLearning PAT Testing Course - Includes Exam and Certificate
- PASS PAT Testing Logbook
- Microwave Leakage Detector
- PASSPTA21 – IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adapter
- PASSPTA29 – IEC Plug (C14) to Cloverleaf (C5) PAT Adapter
- PASSPTA28 – IEC Plug (C14) to Fig 8 (C7) PAT Adapter
- CK Tools AVO5050 5 Piece Insulated Screwdriver Set
- 500 x Passed PAT Testing Labels
- 500 x Circular Passed PAT Testing Labels
- 250 x Cable Wrap Labels
- 250 x Failed PAT Testing Labels
The Kewtech EZYPAT PAT Tester is also available as part of a second bundle, the Kewtech EZYPAT PAT Tester - PAT Professional Kit (Bundle 2). Please see the table below for an overview of the items included in both this bundle and Bundle 2.
Item Description | EZYPAT PAT Tester - PAT Essentials Kit (Bundle 1) | EZYPAT PAT Tester - PAT Professional Kit (Bundle 2) |
---|---|---|
Deluxe Carrying Case Keep all of your equipment safe and in one place with this large-size carrying case! (appearance of the case may vary depending on current stock) |
√ | √ |
Socket Tester Need to check if your sockets are working right? Just plug this into a standard UK plug socket and if there's a problem, the socket tester will let you know about it! |
√ | √ |
eLearning PAT Testing Course - Includes Exam and Certificate Gain a certificate of competency to carry out PAT testing in just two hours with our online PAT course and exam. Teams of staff may be trained by purchasing the course multiple times; each staff member will be assigned a unique activation code and login. |
√ |
√ |
PASS PAT Testing Logbook Keep a record of all of your tests with our logbook. The book includes carbon-copied records, allowing you to keep one for yourself and give the other to customers or keep for a reference. |
√ | √ |

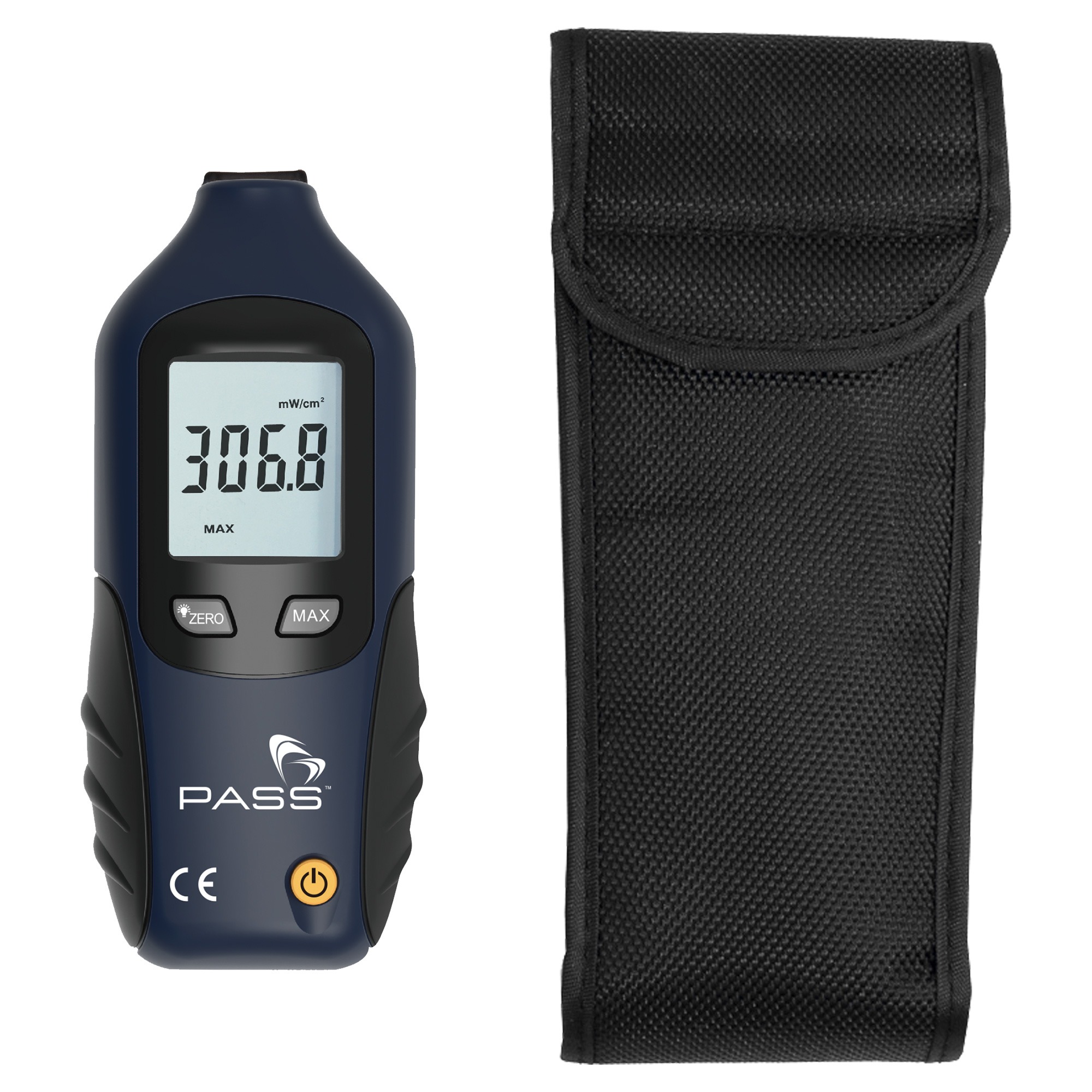

Microwave Leakage Detector When PAT testing, it's common practice to check microwaves are also not emitting high levels of radiation. With our microwave leakage detector, you'll be able to do this testing with ease. |
√ | √ |
PASSPTA21 - IEC (C13 Female) You'll need this adapter to connect your PAT tester to laptop/PC power leads and other similar equipment which has a cloverleaf-shaped connector. |
√ | √ |
PASSPTA29 - IEC Plug (C14) This adaptor is used to connect to laptop power supplies, portable projectors and other similar equipment. |
√ | √ |
PASSPTA28 - IEC Plug (C14) You'll find several appliances such as game consoles, laptop power supplies, audio/visual equipment and more use this type of connector - with this adapter, you can connect them up to your PAT tester. |
√ | √ |
CK Tools AV05050 5 Piece Insulated Screwdriver Kit A handy set of insulated screwdrivers (suitable for live working to 1000V) suitable for a wide variety of applications. |
√ | √ |
WM1 - 500 x Passed PAT Testing Labels You'll need these every time an appliance passes a test - just tear one off, fill in the fields (appliance ID, your name, test date and next test due date) and stick on the appliance when done. |
√ | √ |
WM6500 - 500 x Circular Passed PAT Testing Labels These circular-shaped PAT labels are great for plug tops and any other appliance. The labels also include space for ticking the month/year the next test is due. |
√ | √ |
WM12 250 - 250 x Cable Wrap Labels These passed labels wrap around a wire/cable from an appliance and are recommended for use with power supplies or on appliances where you can't stick a label. They also include space for writing your appliance ID, name, test date and next test date. |
√ | √ |
WM7 250 - 250 x Failed PAT Testing Labels You won't need these as often as your passed labels, but you'll need to apply one of these whenever an appliance fails a test. If it does fail, the item should be taken out of service for repair or replacement |
√ | √ |
SimplyPats Manual PAT Testing Software Keep a database of your PAT testing information on your PC and print reports with SimplyPats Manual software. Please note that this software is manual entry; you cannot download directly from the PAT tester and you will need to type in records by hand. |
- | √ |
Kewtech EZYPAT/ SMARTPAT Comparision Table
Specification | EZYPAT | EZYPAT PLUS | SMARTPAT |
200mA Continuity Test | X | X | X |
250V Insulation Test | X | X | X |
500V Insulation Test | X | X | X |
Substitute Leakage Test | X | X | X |
Polarity Check | X | X | X |
110V Load and Run Test | X | X | |
230V Load and Run Test | X | X | |
Portable RCD Test | X | ||
Compatible with KEWPAT App | X | ||
Customisable Test Sequences | X |
Kewtech EZYPAT PAT Tester – Battery Operated Technical Specifications
Protective Conductor Resistance Test | |
Measuring Range | 0.00 - 20.00 Ω (NULL value inc)* |
Over-range Indication | > 20.00 Ω |
Resolution | 0.01Ω |
Open-circuit Voltage | 5 V ±0.4 V DC |
Measuring Current | 200 mA DC (nominal value) |
Accuracy | ±3%rdg ±5dgt |
* Resistances exceeding 3 Ω cannot be cancelled by NULL function. |
|
Insulation | |
Measuring Range | 0.00 - 20.00 MΩ |
Over-range Indication | > 20.00 MΩ |
Resolution | 0.01 MΩ |
No-load Voltage | 250V : 250 V DC +20%, -0% |
500V: 500 V DC +20%, -0% | |
Short-circuit Current | 1.5 mA DC or less |
Rated Current | 250V: 1 -1.2 mA with a load of 0.25 MΩ |
500V: 1 to 1.2 mA with a load of 0.5 MΩ | |
Accuracy | ±2%rdg±3dgt |
Substitute Leakage | |
Measuring Range | 0.10 - 12.00 mA rms |
Over-range Indication | > 12.00 mA |
Resolution | 0.01mA |
Open-circuit Voltage/ Frequency | 30 V ±5 V rms / 50 Hz ±5% |
Measuring Circuit | 1.2 mA AC ±0.5 mA (when measuring 12.00 mA) |
Accuracy | ±3%rdg±5dgt |
Insulation Testy Between L-N | |
Open-circuit Voltage | 4.5 V ±0.5 V DC |
Criteria of Judgement |
100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted. |
Physical Specifications | |
Safety |
IEC/EN61010-1 CAT II 300V-instrument |
EMC | EN61326-1, 2-2 |
Possible number of |
Approx. 1400 times |
Boxed Weight | 1.61Kg |
Boxed Dimensions (L x W x D) | 261 x 140 x 130mm |
