Kewtech EZYPAT PAT Tester – PAT Professional Kit (Bundle 2)

The Kewtech EZYPAT PAT Tester – PAT Professional Kit (Bundle 2) consists of the Kewtech EZYPAT PAT Tester (supplied with standard manufacturer’s accessories) and an array of additional PAT testing accessories, such as fuses, labels, logbook and the SimplyPats Manual PAT Testing Software. For a comprehensive overview of the items included in this bundle, please see the ‘What’s Included?’ section.

Kewtech EZYPAT PAT Tester Description

The Kewtech EZYPAT PAT Tester has the following testing capabilities:

• 200mA continuity
• 1-second quick check continuity test
• 5-second continuity test
• 250V DC insulation test
• 500V DC insulation test
• Substitute leakage test
• Polarity check
• Extension lead test

It is suitable for performing manual dead tests on extension leads, as well as Class I and Class II appliances without electronic on/off switches. To this end it includes pre-programmed automatic test sequences for extension leads and Class I and Class II appliances which can be run via pressing clearly labelled function buttons.

Other functions present on this entry-level model include a Test Lead Null setting, which eliminates test lead resistance thereby ensuring that tests are conducted accurately, and an Appliance Pre-Check feature. The latter feature allows the user to ascertain whether the appliance-under-investigation is powered on or off prior to commencing any tests, protecting both the user and the instrument from damage.

Further to this, the inclusion of a low current continuity test and 250V insulation test ensures that the Kewtech EZYPAT PAT Tester is IT safe, expanding its scope-for-use.

The Kewtech EZYPAT PAT Tester is battery powered and can perform approximately 1400 tests over the course of a battery life cycle. Results of these tests are indicated on the tester’s large, backlit display. The Kewtech EZYPAT PAT Tester’s backlight will change to green when a test has been passed and will change to red if it has been failed. This colour change along with a written PASS or FAIL indication, and a numerical value, add to the ease-of-use of this tester.

Furthermore, it can be easily adapted using the supplied Kewtech accessories to suit the test environments and/or to facilitate the operator’s testing requirements. The Kewtech EZYPAT PAT Tester is supplied with an extension lead adapter and an earth continuity test lead with a probe and crocodile clip.

The Kewtech EZYPAT PAT Tester is a simple yet comprehensive portable appliance tester. This lightweight, ergonomic instrument is ideal for those wishing to check extension leads, and Class I and Class II appliances without electronic on/off switches.

Kewtech EZYPAT PAT Tester Key Features

• Battery operated PAT tester
• 200mA continuity
• 1-second quick check continuity test
• 5-second continuity test
• 250V DC insulation test
• 500V DC insulation test
• Substitute leakage test
• Polarity check
• Extension lead test
• Optimised for performing manual dead tests on extension leads, as well as Class I and Class II appliances without electronic on/off switches
• Pre-programmed automatic test sequences for extensions leads and Class I and Class II appliances
• Run the pre-programmed automatic test sequences for the above instruments via pressing dedicated, clearly labelled function buttons
• Entry-level model in Kewtech’s EZYPAT/SMARTPAT range
• Test Lead Null setting
• Appliance pre-check function
• IT safe
• Perform approximately 1400 tests over the course of the battery’s lifetime
• Large, backlit display
• Backlight turns green to indicate a PASS
• Backlight turns red to indicate a FAIL
• Supplied with an extension lead adapter and an earth continuity test lead with a probe and crocodile clip
• A simple yet comprehensive portable appliance tester
• Lightweight and ergonomic
• Use with the Kewtech KEWPAT App in Manual mode to collect data and create reports
• The Kewtech KEWPAT App is available for free download from the App Store (iOS) and Google Play (Android)
• Ideal for those wishing to check extension leads, and Class I and Class II appliances without electronic on/off switches

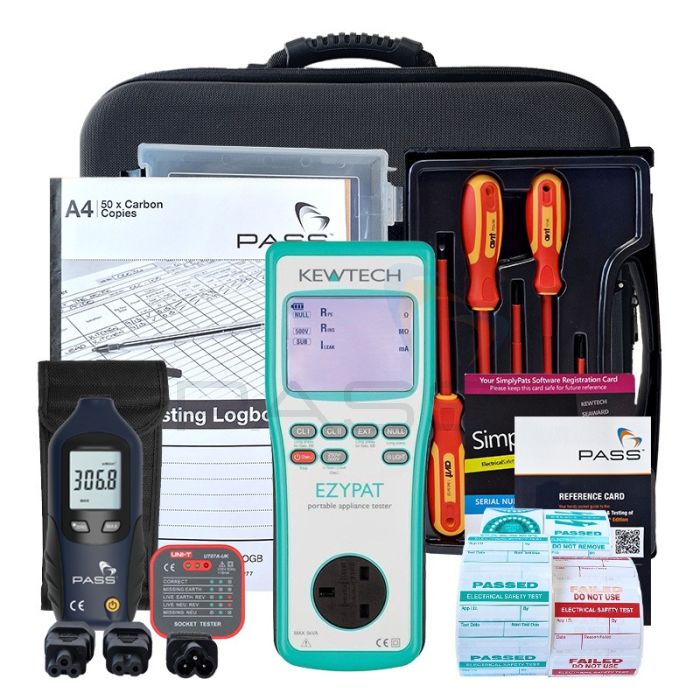

What’s Included in the Kewtech EZYPAT PAT Tester – PAT Professional Kit (Bundle 2)?

• Kewtech EZYPAT PAT Tester (supplied by Kewtech)
• EZYLEAD Extension Lead Adapter (supplied by Kewtech)
• EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip (supplied by Kewtech)
• Carry Bag with Strap (supplied by Kewtech)
• Quick Start Guide (supplied by Kewtech)
• Deluxe Carrying Case
• Socket Tester
• eLearning PAT Testing Course - Includes Exam and Certificate
• PASS PAT Testing Logbook
• Microwave Leakage Detector
• PASSPTA21 – IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adapter
• PASSPTA29 – IEC Plug (C14) to Cloverleaf (C5) PAT Adapter
• PASSPTA28 – IEC Plug (C14) to Fig 8 (C7) PAT Adapter
• CK Tools AVO5050 5 Piece Insulated Screwdriver Set
• 500 x Passed PAT Testing Labels
• 500 x Circular Passed PAT Testing Labels
• 250 x Cable Wrap Labels
• 250 x Failed PAT Testing Labels
• SimplyPats Manual PAT Testing Software

The Kewtech EZYPAT PAT Tester is also available in another bundle, the Kewtech EZYPAT PAT Tester PAT Essentials Kit (Bundle 1). Please see the table below for an overview of the items included in both this bundle and Bundle 1.
