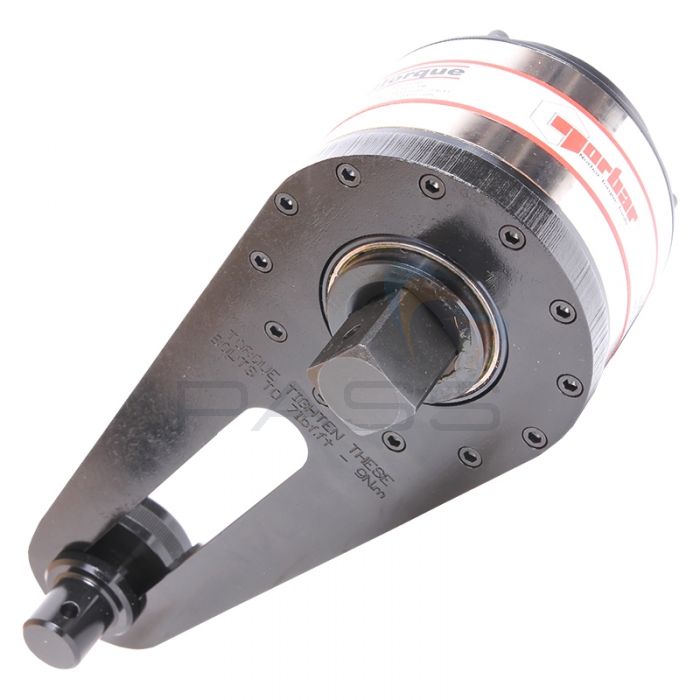

The Norbar HTX/X Handtorque® Standard Multipliers with AWUR can be used to increase the amount of torque applied to a bolt using a torque wrench. They provide an ergonomic solution to performing high-torque applications in areas with limited access. These multipliers feature the same accuracy (±4%) but differ in regards to their torque multiplication ratios, torque ranges, and the size of their input and output squares. For further information regarding these models, please see the following table.
Model Code | Model Name | Torque Multiplication Ratio | Range | Input Square | Output Square |
NOR-16089.HD | Norbar HT2/25 Handtorque® Standard Multiplier with AWUR | 25:1 | 1700 N.m | 1/2" | 1" |
NOR-16090 | Norbar HT5/25 Handtorque® Standard Multiplier with AWUR | 25:1 | 3400 N.m | 1/2" | 1" |
NOR-16092 | Norbar HT6/25 Handtorque® Standard Multiplier with AWUR | 25:1 | 3400 N.m | 1/2" | 1 1/2" |
NOR-16093 | Norbar HT6/125 Handtorque® Standard Multiplier with AWUR | 25:1 | 3400 N.m | 1/2" | 1 1/2" |
NOR-16065 | Norbar HT7/25 Handtorque® Standard Multiplier with AWUR | 25:1 | 6000 N.m | 1/2" | 1 1/2" |
NOR-16068 | Norbar HT7/125 Handtorque® Standard Multiplier with AWUR | 125:1 | 6000 N.m | 1/2" | 1 1/2" |
NOR-16070 | Norbar HT9/25 Handtorque® Standard Multiplier with AWUR | 25:1 | 9500 N.m | 3/4" | 1 1/2" |
NOR-16071 | Norbar HT9/125 Handtorque® Standard Multiplier with AWUR | 125:1 | 9500 N.m | 1/2" | 1 1/2" |
NOR-16049 | Norbar HT11/125 Handtorque® Standard Multiplier with AWUR | 125:1 | 20 000 N.m | 1/2" | 2 1/2" |
NOR-18085 | Norbar HT12/87.5 Handtorque® Standard Multiplier with AWUR | 87.5:1 | 34 000 N.m | 3/4" | 2 1/2" |
NOR-16053 | Norbar HT13/125 Handtorque® Standard Multiplier with AWUR | 125:1 | 47 500 N.m | 3/4" | 2 1/2" |
The Norbar HTX/X Handtorque® Standard Multipliers utilise multiple stages of epicyclic gearing to generate greater output torques from the torque inputted via the torque wrench. This allows the operator to use a smaller torque wrench for high-torque applications. Additionally, each of the eleven models listed above features an anti-wind-up ratchet (AWUR) specifically designed to contain the forces generated during tightening. This improves both the safety and ease-of-operation of these instruments. For a quick introduction into how the AWUR operates, please see the following video.
The Norbar HTX/X Handtorque® Standard Multipliers can also be fitted with reactions of various styles (NOT included) to accommodate a majority of applications (please call for details).
Further to this, the Norbar HTX/X Handtorque® Standard Multipliers are compatible with Norbar’s electronic torque transducers. When fitted with an electronic torque transducer (NOT included), the Norbar HTX/X Handtorque® Standard Multipliers can be used to monitor torque precisely. For further information regarding compatible electronic torque transducers, please contact our sales team.
Finally, it is possible to order the Norbar HTX/X Handtorque® Standard Multipliers with a UKAS calibration. Again, please call for details.
The Norbar HTX/X Handtorque® Standard Multipliers with AWUR are versatile, precise and ergonomic. They are ideal for performing high-torque applications in cramped and/or difficult-to-access areas.
Norbar HTX/X Handtorque® Standard Multipliers Key Features
- Increase the amount of torque applied to a bolt using a torque wrench
- Provide an ergonomic solution to performing high-torque applications in areas with limited access
- Accuracy: ±4%
- Available in eleven models with different torque multiplication ratios and torque ranges
- The models also vary in regards to the size of their input and output squares
- Multiple stages of epicyclic gearing generate a greater output torque from the torque inputted via the torque wrench
- Allows the operator to use a smaller torque wrench for high-torque applications
- Anti-wind-up ratchet (AWUR) contains the forces generated during tightening
- AWUR improves the multiplier’s safety and ease-of-handling
- Can be fitted with reactions of various styles (NOT included, please call for details)
- Use with an electronic torque transducer (NOT included, please call for details) to monitor torque precisely
- OPTIONAL UKAS calibration available, please call for details
- Versatile, precise and ergonomic tools
- Ideal for performing high-torque applications in cramped and/or difficult-to-access areas
What’s Included?
- Your Choice of Norbar HTX/X Handtorque® Standard Multiplier with AWUR
Norbar HTX/X Handtorque® Standard Multipliers with AWUR Technical Specifications
Specification | NOR-16089.HD | NOR-16090 | NOR-16092 | NOR-16093 | NOR-16065 | NOR-16068 | NOR-16070 | NOR-16071 | NOR-16049 | NOR-18085 | NOR-16053 |
Tool Weight | 6.7 Kg | 7.5 Kg | 7.5 Kg | 9 Kg | 10.7 Kg | 12.2 Kg | 17.4 Kg | 18.9 Kg | 32.1 Kg | 41.5 Kg | 95.2 Kg |
Multiplication Ratio | 25:1 | 25:1 | 25:1 | 125:1 | 25:1 | 125:1 | 25:1 | 125:1 | 125:1 | 87.5:1 | 125:1 |
Output Square | 1" | 1" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 2 1/2" | 2 1/2" | 2 1/2" |
Input Square | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 3/4" | 1/2" | 1/2" | 3/4" | 3/4" |
Velocity Ratio | 29.752:1 | 29.752:1 | 29.752:1 | 162.284:1 | 29.091:1 | 158.678:1 | 29.752:1 | 162.284:1 | 158.678:1 | n/a | 158.678:1 |
Max Input Speed | 210 revs/min | 105 revs/min | 105 revs/min | 525 revs/min | 58 revs/min | 292 revs/min | 38 revs/min | 188 revs/min | 105 revs/min | n/a | 38 revs/min |
Plate Weight | 2.2 Kg | 2.5 kg | 2.5 kg | 2.5 Kg | 6.3 Kg | 6.3 Kg | 8.3 Kg | 8.3 Kg | 13.3 Kg | 6.5 Kg | 6.9 Kg |
Plate Torque | 9 N.m | 19 N.m | 19 N.m | 19 N.m | 75 N.m | 75 N.m | 75 N.m | 75 N.m | 75 N.m | n/a | 310 N.m |
SKU | NOR-HTX/X-AWUR |
---|---|
Manufacturer Part Code | 16089.HD |
