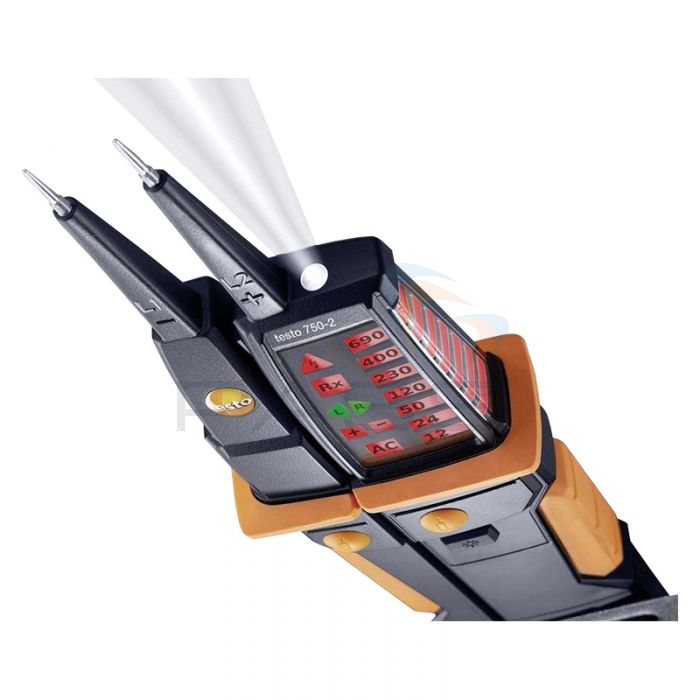

Testo 750-2 Voltage Tester
Tired of working at strange angles with your voltage tester so you can see the results? With Testo's 750-2, it's no longer a problem.
Testo 750 series voltage testers are the industries' first instruments with an all-round LED display of voltage measurements, so you can hold the tester sideways or even back-to-front and still see the results as voltage levels increase!
The Testo 750-2 is the upgraded version of the standard Testo 750-1. This unit features all of the basic functionality of the Testo 750-1 plus unique new features including the ability to carry out single pole voltage testers, a built-in torch light (ideal for working in darkened areas) and an RC trigger function.
The Testo 750-2 will measure voltage from 12 to 690V AC/DC. It's also suitable for performing continuity tests and can perform rotating magnetic field testing from 100 to 690V AC at 50/60Hz.
Testo 750-2 Voltage Tester Key Features
- Unique all-around viewable LED bar indicators of voltage levels - use backwards, sideways and still see the voltage level
- 0 to 690V AC/DC voltage measurements
- Polarity detection for DC voltage measurements
- Phase sequence test for determining motor rotation
- Two-handed operation with anti-slip rings for safer voltage measurements
- Continuity test with audible/visual indication
- Built-in torch light
- Perform single pole voltage tests
- RC trigger function
- Dust and water protection to IP64
- CAT IV 600V and CAT III 1000V rated
What's Included?
- Testo 750-2 Voltage Tester
- Batteries
- Measuring Tip Protector
- Measuring Tip Caps
The Testo 750 Series - Three Models Available
 |
Testo 750-1 Voltage Tester |
 |
Includes all of the functionality of the standard Testo 750-1, plus the following additional features:
|
 |
The best overall model in the series. Includes every function on the 750-1 and 750-2. This is the only product in the 750 series with a built-in LCD screen to show you an actual voltage measurement as well as showing voltage using LED indicators. View the 750-3 >> |
Testo 750 Series Technical Specifications
This table outlines the difference between each model in the Testo 750 series.
| Model Number | Testo 750-1 | Testo 750-2 | Testo 750-3 |
|---|---|---|---|
| Voltage Testing | 12 to 690V | ||
| Input Impedance | <500kΩ | ||
| Phase Sequence Testing | 100 to 690V AC at 50/60Hz | ||
| Single Probe Voltage Testing | - | 100 to 690V AC at 50/60Hz | |
| GFCI Test Function | - | Yes | Yes |
| Continuity | Yes | Yes | Yes |
| 3-Digit LCD | - | - | Yes |
| Measuring Point Illumination | - | Yes | Yes |
| Measurement Category | CAT IV 600V CAT III 1000V |
||
| Protection Class | IP64 | ||
| Operating Temperature | 14 to 122°F (-10 to +50°C) | ||
| Storage Temperature | 5 to 140°F (-15 to +60°C) | ||
| Dimensions (L x W x H) | 10.6 x 2.5 x 1.4" (270 x 65 x 35mm) | 10.6 x 2.8 x 1.4" (270 x 70 x 35mm) | |
| Weight | 0.5lbs (230g) | 0.7lbs (295g) | |
| Warranty | 2 years | ||
| Authorisations | TUV, CSA, CE | ||
| Standard | EN 61243-3:2010 | ||
| Batteries | 2 x AAA | ||
| SKU | 05907502 |
|---|---|
| Manufacturer Part Code | 0590 7502 |
