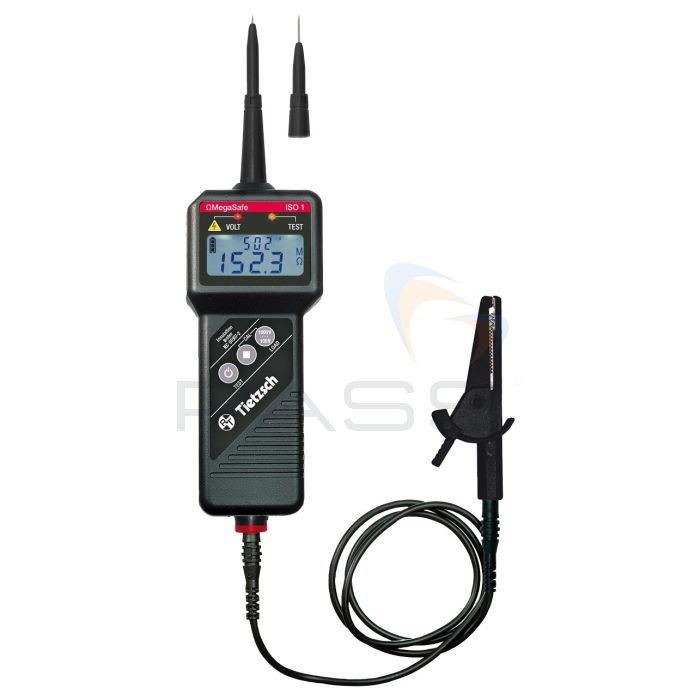

Tietzsch Megasafe ISO 1 Insulation & High-Impedance Tester
- Measuring range: 1 kOhm - 20 GOhm
- Test voltage 100 - 1 000 V
- 100, 250, 500 und 1000 V test voltage
SKU
ISO1
MPN
83315
The Tietzsch MegaSafe ISO 1 is designed for insulation and bleeder resistor testing, as well as verification of antistatic floors and surfaces in compliance with VDE 0413-2 / EN 61557-2. It supports test voltages of 100, 250, 500, and 1000 V and measures resistance from 1 kΩ to 20 GΩ.
The ISO 1 has automatic range selection, external and residual voltage detection, a large backlit display, CAT IV 600 V / CAT III 1000 V ratings, integrated protection against external voltages up to 1000 V, and LED/acoustic warnings for live voltage.
Key Features
- Measuring range: 1 kOhm - 20 GOhm
- Test voltage 100 - 1 000 V
- Safety: CAT IV 600 V / CAT III 1 000 V
- Including one test line and one crocodile clip
- Precise indication of resistance between 1 kΩ and 20 GΩ
- 100, 250, 500 und 1000 V test voltage
- Universally applicable due to large measuring range and automatic range selection
- Large display with backlight
- External voltage and residual voltage detection of capacities
- Clear LED indicator for dangerous voltage
- Voltage value on the LCD and warning acoustic signal
- Protection circuit against external voltages up to 1000 V
- Varied accessories
- Easy handling and compact design
- Robust casing
- IP 65 - waterproof
Offers
Free PASS Football (Spend £250+)
Automatically adds to your basket when the total exceeds £250+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| EP 4 | EP 4Ex | ISO 1 | ISO 1Ex | |
|---|---|---|---|---|
| Resistance Range | 0,01 Ohm - 2 MOhm | 1 kOhm - 20 GOhm | 1 kOhm - 2 TOhm | |
| Test Voltage | - | 100 V 250 V 500 V 1000 V |
32V 100V 500V |
|
| Test Current | max. 200 mA | 1 mA | - | |
| Continuity Tester with Tone | Yes | |||
| Connection / Electrode | + Electrode 4 mm - Socket for 4 mm plug |
+ Electrode 4 mm - Socket for 4 mm plug |
+ Electrode 4 / 15 mm - Socket for 4 mm plug |
+ Socket for 4 mm plug - Socket for 4 mm plug |
| Energy Supply | 1 x 9 V | |||
| Overvoltage Category | CAT III 300 V CAT II 600 V |
CAT III 300 V CAT II 600 V According to EN/IEC 61010-1 |
CAT IV 600 V CAT III 1000 V |
CAT III 600 V According to EN/IEC 61010-1 |
| Protection Class | IP 65 | |||
| Ex Approval According to ATEX | No | Yes ll 2G Ex ib llC T4 Gb according to DIN EN 60079-0 and DIN EN 60079-11 |
No | Yes ll 2G and l M2 ib llB T4 according to DIN EN 60079-0 and DIN EN 60079-11 |
| Former Peak Values | - | U <sub>0 </sub> = 8.7V I <sub>0</sub> = 220 mA P <sub>0</sub> = 1.3 W Maximum permissible inductance: 0.2 mH Maximum permissible capacitance: 5.0 µF |
- | U <sub>0 </sub> = 550 V, I <sub>0</sub> = 1.5 mA, maximum permissible inductance 100 mH, maximum permissible capacitance 0.47 nF |
| Ambient Temperature | -10 ... + 50 °C | -10 ... + 40°C | -10 ... + 50 °C | -10 ... + 40°C |
| Scope | Testing of protective measures according to IEC 61557-4 (VDE 0413 Part 4) such as protective conductor testing or testing of machine earthing |
Testing of protective measures according to IEC 61557-2 (VDE 0413 Part 2) such as leakage testing of floors and surfaces |
||
| Art. No. | 83302 | 83301 | 83315 | 83310 |
| Product Dimensions and Weight |
230 x 60 x 40 mm 180 g |
230 x 60 x 40 mm 220 g |
230 x 60 x 40 mm 220 g |
230 x 60 x 40 mm 220 g |
