Description

TPI 716 Flue Gas Combustion Analyser Details

The TPI 716 is an advanced flue gas combustion analyser ideal for use by any professional gas engineer.

Pump-driven to ensure fast response, the 716 can measure O2, CO and flue temperature. It can also calculate efficiency, excess air, CO2 and CO/CO2 ratio and includes a built-in CO (carbon monoxide) analyser to detect CO presence in ambient air. In other words, this analyser gives engineers a comprehensive snapshot of what's happening inside both commercial and domestic boilers!

The 716 also comes equipped with a differential manometer for pressure measurements and a differential thermometer with dual type-K thermocouple inputs for measuring temperature differentials. Additional functions include an enhanced let-by and tightness test with timed start, stop and differential pressure readings, a CO build-up test, simultaneous pressure and combustion readings and much more!

This analyser is compatible with multiple fuel types and can be used with boilers powered by natural gas, LPG, light oil, heavy oil, bituminous coal, anthracite coal, coke, butane, wood and bagasse.

TPI 716 Flue Gas Combustion Analyser Key Features

  • Large size, easy-to-read 4 or 8 line graphical display - no need to scroll through measurements - see them all at once!
  • Measure O2 (oxygen), CO (carbon monoxide) and flue temperature
  • Calculate efficiency and excess air
  • CO and CO/CO2 ratio calculations
  • Built-in CO analyser detects carbon monoxide levels in ambient air
  • Differential manometer built-in with ±150mBar range (0.01mBar resolution)
  • Dual type K thermocouple differential thermometer built-in
  • 30 second countdown function for combustion readings speeds up testing time
  • Enhanced let-by and tightness testing with timed start, stop and differential pressure readings
  • Menu-driven user interface - easy to navigate to different functions
  • CO built-up test - quickly prove or disprove CO levels
  • Simultaneously measure pressure and combustion readings
  • Large capacity pump with visible flow rate on screen - constantly monitored to prevent damage and downtime
  • 10000ppm CO sensor - ensures that the analyser won't be damaged if exposed to high levels of CO
  • Datalogging with date and time stamping
  • Communicate to a PC via USB connection
  • Push-on fittings for fast and easy use
  • 6 year warranty included as standard

What's Included?

  • TPI 716 Flue Gas Combustion Analyser
  • Combustible Gas Leak Probe
  • Rubber Boot (Installed On Analyser)
  • Soft Carrying Case
  • Flue Sampling Probe
  • In-Line Filter/Water Trap (Installed on Flue Probe)
  • Disc Water Filter (Installed in Water Trap)
  • Temperature Probe
  • Battery Charger
  • Mini Pump Protection Filter Assembly
  • Removable Exhaust Spigot
  • Pressure Tubing
  • 2 x Static Pressure Tips
  • 2 x ¼" barbed to 1/8" NPT Fitting
  • Gas Valve Adapter
  • Instruction Manual

TPI 716 Kits

Did you know that the 716 is also available in several kits which come with additional items?

KitWhat's Included?

(Please note that all kits contain all standard accessories)

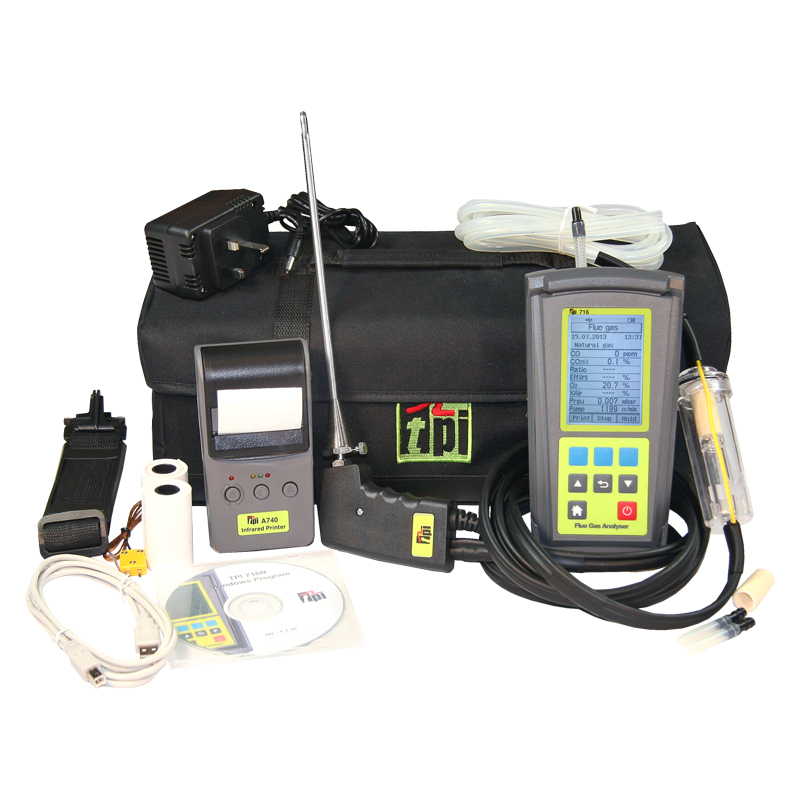

Kit 1
TPI 716 Kit 1
Comes with a TPI A740 IR Printer

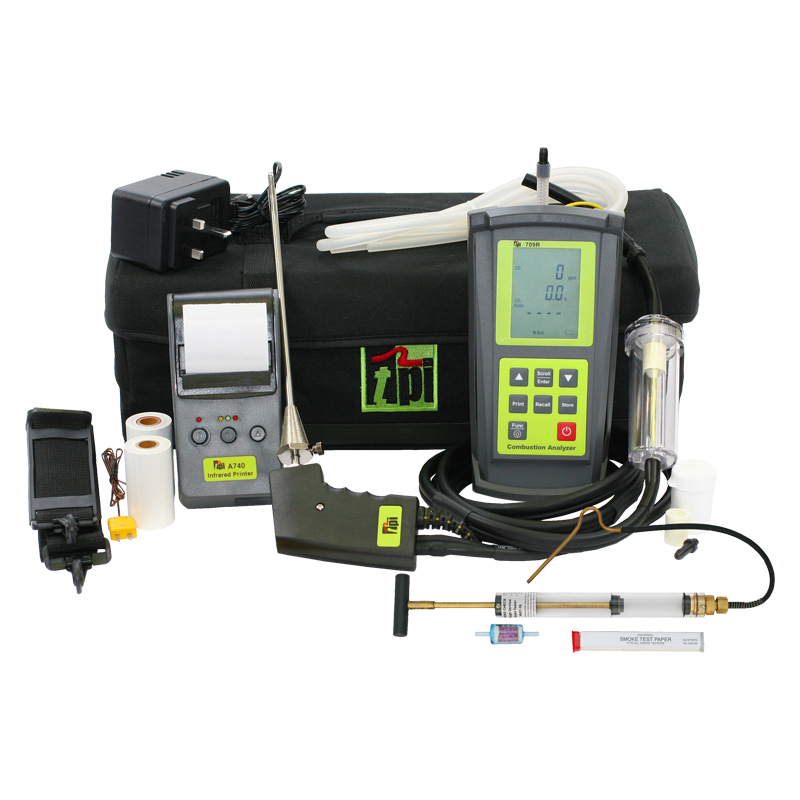

Kit 1 (Oil)
TPI 716 Kit 1 (Oil)
Comes with Printer, Smoke Pump and Oil Filter

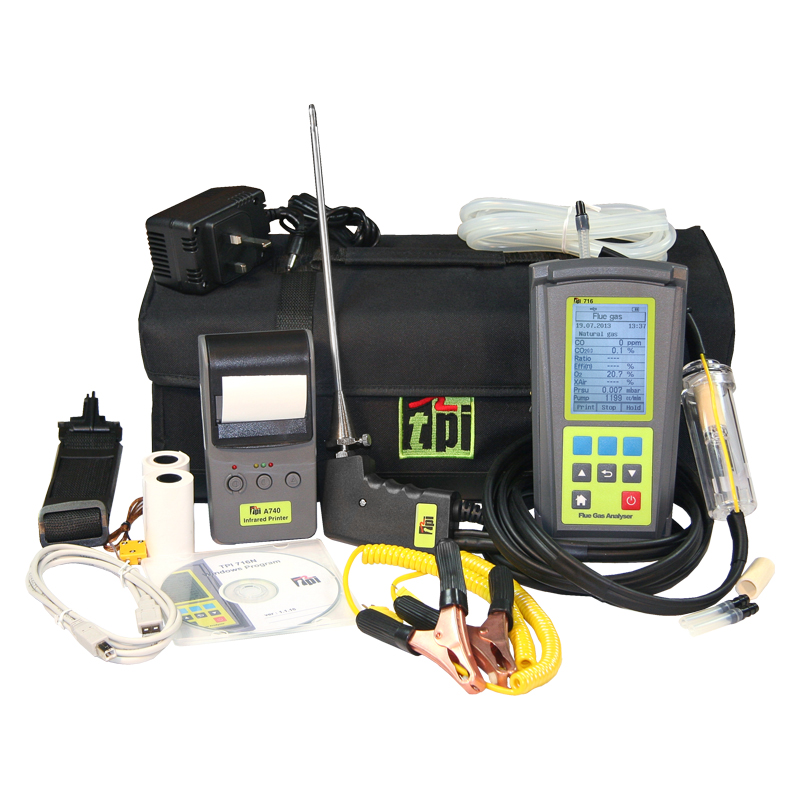

Kit 2
TPI 716 Kit 2
Comes with a Printer and 2 x CK21M Pipe Clamps

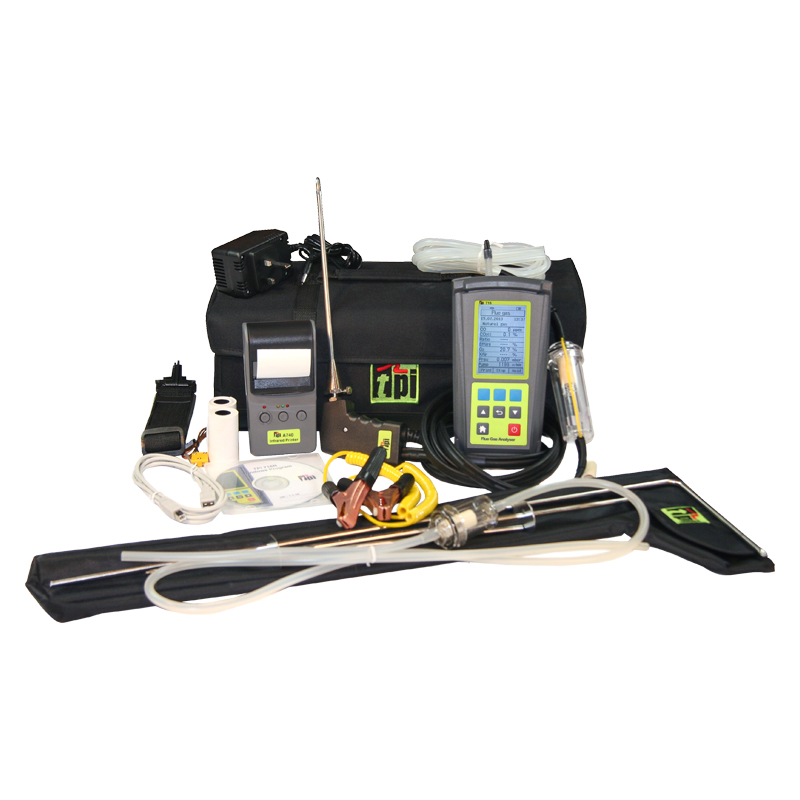

Kit 3
TPI 716 Kit 3
Comes with Printer, 2 x Pipe Clamps and CPA1 Probe Kit

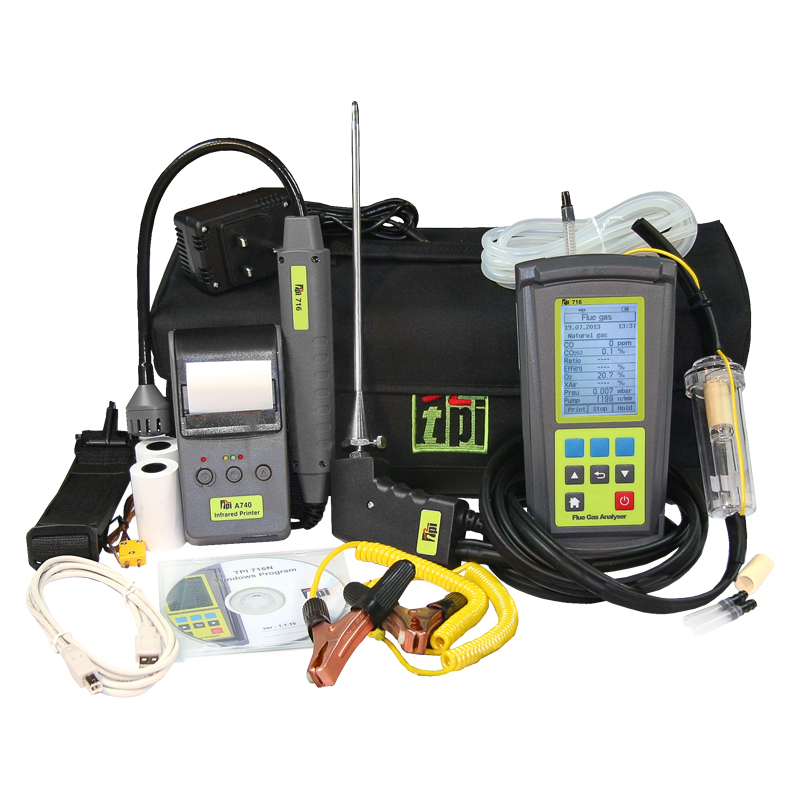

Kit 4
TPI 716 Kit 4
Comes with a Printer, 2 x Pipe Clamps and Plug-In Gas Sniffer

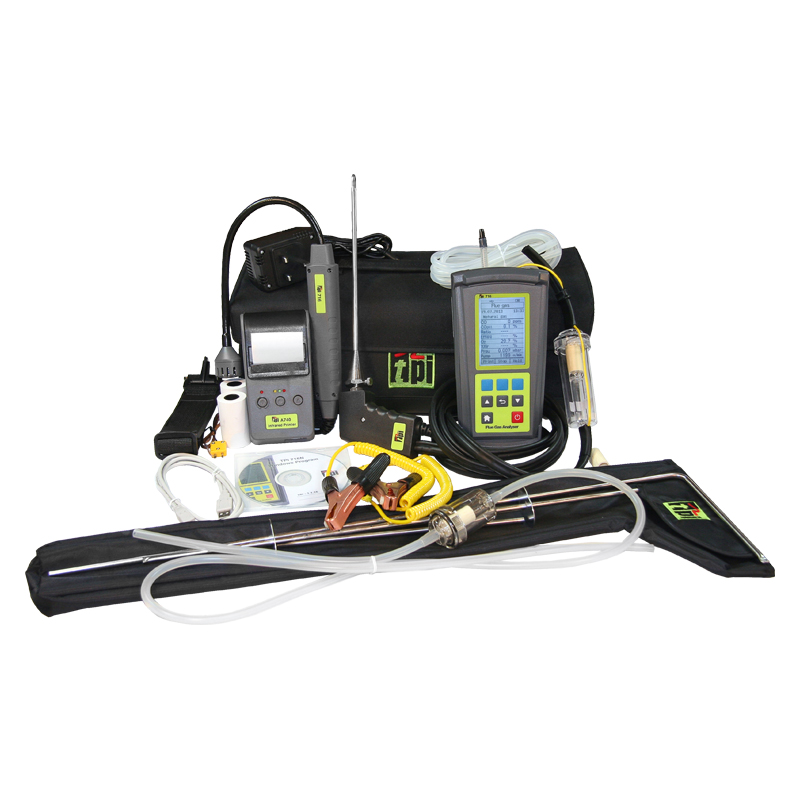

Kit 5
TPI 716 Kit 5
Comes with Printer, 2 x Temperature Pipe Clamps, CPA1 Probe Kit and Plug-In Gas Sniffer
Accessories (16)

TPI CK11M K-Type Contact Surface Temperature Probe
Was: £27.50
You Save: £2.75
£24.75 Incl. VAT £29.70
TPI CK12M K-Type Right-Angled Surface Temperature Probe
Was: £27.50
You Save: £2.75
£24.75 Incl. VAT £29.70
TPI CK13M Heavy-Duty Type K Surface Temperature Probe
Was: £30.00
You Save: £3.00
£27.00 Incl. VAT £32.40
TPI CK14M Heavy-Duty K Type Right Angled Surface Temperature Probe
Was: £32.50
You Save: £3.25
£29.25 Incl. VAT £35.10
TPI CK16M Heavy Duty Contact Surface Temperature Probe - K Type
Was: £30.00
You Save: £3.05
£26.95 Incl. VAT £32.34
TPI CK17M 45 Degree Angle Surface Temperature Probe - K Type
Was: £35.00
You Save: £3.50
£31.50 Incl. VAT £37.80
TPI CK18M Flat Surface Temperature Probe - K Type
Was: £65.00
You Save: £6.50
£58.50 Incl. VAT £70.20
TPI FK11M Chisel Tip Penetration Temperature Probe - K Type
Was: £22.50
You Save: £2.55
£19.95 Incl. VAT £23.94
TPI FK12M Pointed Tip Heavy Duty Penetration Probe - K Type
Was: £30.00
You Save: £3.00
£27.00 Incl. VAT £32.40
TPI FK14M Chisel Tip Penetration Temperature Probe - K Type
Was: £22.50
You Save: £2.25
£20.25 Incl. VAT £24.30
TPI FK21M Tapered Chisel Tip Penetration Temperature Probe - Type K
Was: £22.50
You Save: £2.25
£20.25 Incl. VAT £24.30
TPI FK23M Air/Liquid Temperature Probe w/ Clip
Was: £45.00
You Save: £4.50
£40.50 Incl. VAT £48.60
TPI FK24M Heavy-Duty T-Handle Long Stem Penetration Probe
Was: £50.00
You Save: £5.00
£45.00 Incl. VAT £54.00
TPI GK12M General Purpose Rack Clip Beaded Temperature Probe
Was: £10.00
You Save: £1.00
£9.00 Incl. VAT £10.80
TPI GK13M FEP-Insulated Beaded Tip Probe
Was: £8.00
You Save: £0.80
£7.20 Incl. VAT £8.64
TPI GK14M Rigid Stem Hooded Exposed Tip Temperature Probe
Was: £22.50
You Save: £2.25
£20.25 Incl. VAT £24.30
Technical Specs

Part Code: 716-Kit

TPI 716 Technical Specifications

Operating Temperature Range 14°F to +122°F (-10°C to +50°C)
Battery/Battery Life Rechargeable NiMH / > 6 hours
Charger Input Voltage 115V or 230V: 50/60Hz AC
Fuels Natural gas, LPG, light oil, heavy oil, bituminous coal, anthracite coal, coke, butane, wood, bagasse
Units of Pressure mbar, kPa, and inH20
Display 8 line graphical LCD (backlit)
Data Storage 100 sets of readings
Data Logging 400 sets of readings
Single Logging 150 sets of readings
Time and Date 24 hour real time clock
Dimensions 7.8 x 3.5 x 2.4"
Weight 1.1lbs
Measurement Ranges
Gas Range Resolution Accuracy
Oxygen 0-25% 0.1% ±0.3%
Carbon Monoxide 0-10000ppm 1ppm ±5ppm or 5%
Carbon Dioxide 0-25% 0.1% Calculated
CO/CO2 Ratio 0-0.999 0.001 Calculated
Combustion Efficiency 0-100% - Calculated
