First Stop Safety BATTPAT Simple PAT Tester
Why not view our comparison of all of our entry-level PAT testers?
PAT testing made simple - the BattPAT is an excellent choice for those new to PAT tester, or those looking for a simple, easy-to-use PAT tester which will check the electrical safety of appliances in offices, hotels, schools, nursing homes and other similar areas.
Handheld and portable with fully rechargeable batteries, the BattPAT is great for taking from appliance to appliance (even the tricky ones under desks). It's fully suitable for use with both class I and class II appliances, is suitable for testing PCs and other IT equipment and is also ideal for testing power leads.
This video from First Stop Safety outlines the basic functionality of the BattPAT Simple PAT Tester.
The BattPAT is a PASS/FAIL PAT tester. This means that it doesn't show full testing results; instead you'll see the BattPAT light up either a red indicator for a FAIL, or a green indicator for a PASS.
Using the BattPAT is simple, even for a beginner. Simply connect to your appliance or lead using the included leads, then press the associated button on the front of the tester. The buttons perform the following tests:
- Class I Metal: earth continuity and insulation resistance
- Class I Plastic: insulation resistance
- Class II: insulation resistance
- Power Cord: continuity, insulation resistance and polarity
A dedicated button for testing long leads (in excess of 20m) is also included which is ideally suited for testing IEC extension cables. The tester has dual power ports for connection of a standard UK plug (3 pin) or an IEC power lead.
First Stop Safety BattPAT Simple PAT Tester Key Features
- Portable, easy to use, entry-level PAT tester ideal for smaller offices, schools, charity shops and other applications with only a few appliances to test
- PASS/FAIL test indication - uses green or red LED lights to let you know whether an appliance is safe to use or not
- Test class I and class II appliances, power leads and longer extension leads (above 20m)
- Low current earth continuity test makes the BattPAT fully suitable for use with IT equipment
- Suitable for testing both 230V and 110V appliances (requires optional 110V adaptors for testing 110V)
- Insulation resistance test voltage compatible with surge-protected mains extension leads (prevents false readings)
- Powered by fully rechargeable lithium ion batteries with hundreds of tests possible between each charge
- Dedicated buttons for each test automatically carry out all necessary testing procedures
- Tests earth continuity, insulation resistance and polarity
What's Included?

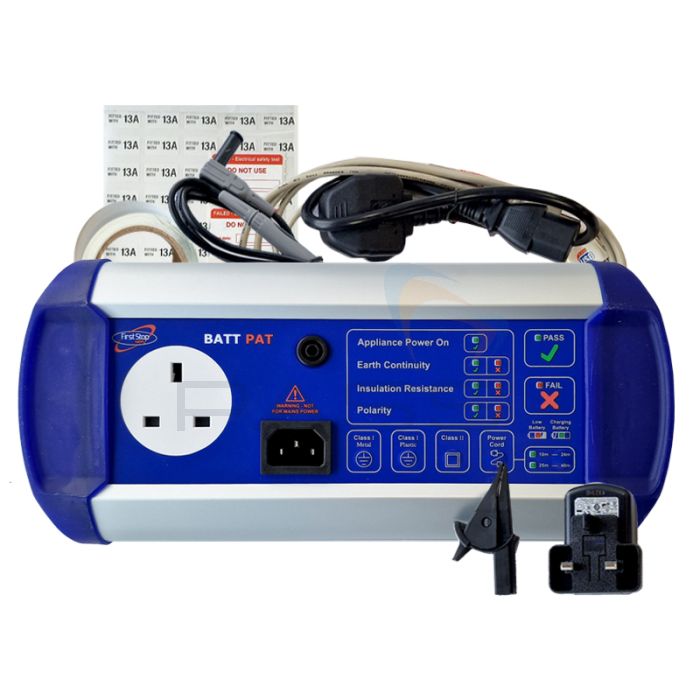

- First Stop Safety BattPAT Simple PAT Tester
- Battery Charger
- Test Lead
- Rechargeable NiMH Batteries
- User Manual
- Equipment Register Form
- Test Record Form
- Short IEC Lead
- 100 Tested Labels
- 5 Failed Labels
- 50 Fuse Labels
Upgrade to Our BattPAT Simpele PAT Testing Kits!
Here at Tester.co.uk, we aim to give you everything you need when you buy your new PAT tester.
We offer a number of PAT testing kits for the BattPAT which include everything you'd normally receive as standard plus additional accessories such as our training DVD, microwave leakage detectors, more labels, logbooks and much more.
The following table compares each of our available BattPAT testing kits.
Don't need everything that's in one of the kits? No problem - call our sales team and they'll be happy to put you together your perfect PAT testing bundle pack.
| Item Description | BattPAT Simple PAT Tester Essentials Kit (Bundle 1) | BattPAT Simple PAT Tester Professional Kit (Bundle 2) |
|---|---|---|
|
Keep all of your equipment safe and in one place with this large-size carrying case! (appearance of case may vary depending on current stock) |
√ | √ |
|
Need to check if your sockets are working right? Just plug this in to a standard UK plug socket and if there's a problem, the socket tester will let you know about it! |
√ | √ |
|
Not yet trained as a PAT tester? With our training DVD, you can train yourself from the comfort of your own home or workplace! The DVD includes access to our online examination for one person (you can also purchase additional exams for other team members, if needed). |
√ |
√ |
|
Everything you need to know about PAT testing is outlined in this comprehensive book. Inside, you'll find useful information, colour-coded sections, photographic examples and much more to help you PAT test on a daily basis. |
√ | √ |
|
Keep a record of all of your testing with our logbook. The book includes carbon-copied records, allowing you to keep one for yourself and give the other to customers or keep for a reference. |
√ | √ |
|
When PAT testing, it's common practice to check microwaves are also not emitting high levels of radiation. With our microwave leakage detector you'll be able to do this testing with ease. |
√ | √ |
|
You'll need this adaptor to connect your PAT tester to laptop/PC power leads and other similar equipment which has a cloverleaf-shaped connector. |
√ | √ |
|
This adaptor is used to connect to laptop power supplies, portable projectors and other similar equipment. |
√ | √ |
|
You'll find several appliances such as game consoles, laptop power supplies, audio/visual equipment and more use this type of connector - with this adaptor, you can connect them up to your PAT tester. |
√ | √ |
|
A handy set of insulated screwdrivers (suitable for live working to 1000V) suitable for a wide variety of applications. |
√ | √ |
|
You'll need these every time an appliance passes a test - just tear one off, fill in the fields (appliance ID, your name, test date and next test due date) and stick on the appliance when done. |
√ | √ |
|
These circular-shaped PAT labels are great for plug tops and any other appliance. The labels also include space for ticking the month/year the next test is due. |
√ | √ |
|
These passed labels wrap around a wire/cable from an appliance and are recommended for use with power supplies or on appliances where you can't stick a label. They also include space for writing your appliance ID, name, test date and next test date. |
√ | √ |
|
You won't need these as often as your passed labels, but you'll need to apply one of these whenever an appliance fails a test. If it does fail, the item should be taken out of service for repair or replacement |
√ | √ |
|
Keep a database of your PAT testing information on your PC and print reports with SimplyPats Manual software. Please note that this software is manual entry; you cannot download directly from the PAT tester and you will need to type in records by hand. |
- | √ |
Deluxe Carrying Case
Socket Tester
PAT Testing Training DVD +
The PASS Handbook of Portable Appliance Testing
PASS PAT Testing Logbook
Microwave Leakage Detector
PASSPTA21 - IEC (C13 Female)
PASSPTA29 - IEC Plug (C14)
PASSPTA28 - IEC Plug (C14)
CK Tools AV05050 5 Piece Insulated Screwdriver Kit
WM1 - 500 x Passed PAT Testing Labels
WM6500 - 500 x Circular Passed PAT Testing Labels
WM12 250 - 250 x Cable Wrap Labels
WM7 250 - 250 x Failed PAT Testing Labels
SimplyPats Manual PAT Testing Software-
-
First Stop Safety BattPAT - Replacement Earth LeadSKUBATTPAT/EARTH -
500 x PAT Testing Labels/Cable Wraps - PASSEDSKUWM12 500 -
PASS PAT Testing Logbook - Carbon Copy (Branded)SKUPASSLOGB -
500 x PAT Testing Labels - PassedSKUWM1 500 -
First Stop Safety Charger for BattPAT TesterSKUBATTPAT/CHARGER -
PASS Handbook of Portable Appliance TestingSKUPASSPTA23 -
Simply Pats Manual Entry PAT Testing SoftwareSKUSIMPLYPATSMANUAL -
-
Microwave Leakage Detector Tester LCD +3 FREE LabelsSKUPASSPTA20
BattPAT Technical Specifications
| Earth Continuity Test | |
| Current | 150 mA |
| AC Voltage | 9V |
| Tolerance | 5% + 20 mΩ |
| Fail Threshold (Normal Lead Up to 10m) | >250 mΩ |
| Fail Threshold (Long Lead Up to 25m) | >500 mΩ |
| Insulation Test | |
| Test Voltage | 350V |
| DC Current | <3mA |
| Tolerance | 5% + 0.1 |
| Fail Threshold Class I | <2 mΩ |
| Fail Threshold Class II | < 4 mΩ |
| Polarity Test | |
| Test Voltage | 5V |
| DC Current | 0.5mA |
| Working Load | >30kΩ |
| Battery and Charging | |
| Battery | 9V, NiMH, 280 mAH |
| Life | 500 Operations |
| Fast Charge | 100mA, 1 Hour |
| Trickle Charge | 5mA |
| Charger | DC, 12V, 300mA |
| Dimensions | |
| Height | 45mm |
| Width | 285mm |
| Depth | 130mm |
| Weight | 1.1kg |
