Part of Extech's ExStik II range of meters, the DO600 is a portable, intuitive testing device that can be used to accurately determine saturated and concentrated dissolved oxygen levels in various different applications.
When measuring oxygen levels the DO600 can display % saturation from 0 to 200.0% or alternatively can display concentration from 0 to 20.0ppm (mg/L). This dissolved oxygen meter also contains altitude compensation (0-20000ft in 1000ft increments) and adjustable salinity from 0 to 50ppt.
The design of this meter is purposefully made to make measuring dissolved oxygen as easy as possible. The bottom of the unit includes a high quality sensor membrane for detecting oxygen levels and this also includes a cap for protecting the membrane between tests. The results detected are relayed automatically through the devices' screen along with an accompanied temperature reading.
Also built into this dissolved oxygen meter is the ability to store up to 25 data sets with DO and temperature readings stored. The unit will also self calibrate itself on startup to ensure measurement accuracy and contains a selection of additional features which are outlined further below.
Extech DO600 Waterproof ExStik II Dissolved Oxygen Meter Key Features
- DO saturation mode: 0 to 200% range
- DO concentration mode: 0 20.00ppm (mg/L) range
- Temperature readings from 32 to 122°F (0 to 50°C)
- Adjustable altitude compensation
- Adjustable salinity compensation
- Analogue bargraph can be used to indicate measurement trends
- Built in memory stores 25 sets of data with DO and temperature readings
- Self calibration on start up
- Data hold functionality
- Auto power off
- Low battery indicator
- IP67 waterproofing
- Compatible with optional 3ft or 16ft extension cables with probe weight (EX010 and EX050)

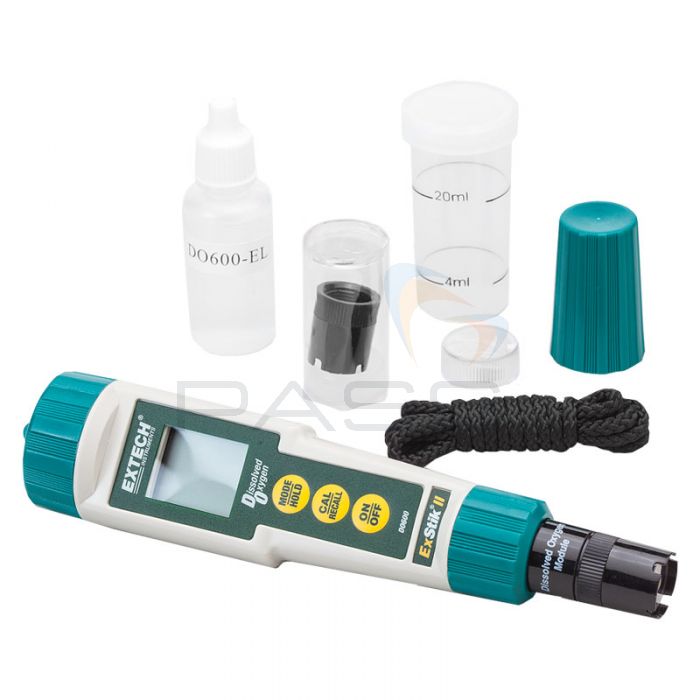

Full List of Products Included
- Extech DO600 Waterproof ExStik II Dissolved Oxygen Meter
- DO Electrode
- Protective Sensor Cap
- Spare Membrane Cap
- Electrolyte
- 4 x 3V CR-2032 Batteries
- 48" (1.2M) Neckstrap
Extech DO600 Technical Specifications
Specifications | Range | Max Resolution | Basic Accuracy |
DO (Saturation Mode) | 0 to 200% | 0.1% | ±2% FS |
DO (Concentration Mode) | 0 to 20.00ppm (mg/L) | 0.01ppm (mg/L) | 0.4ppm (mg/L) |
Temperature | 32 to 122°F (0 to 50°C) | 0.1°F/°C ±1.8°F (1°C) | |
Dimensions | 1.4x6.9x1.6" (36x176x41mm | ||
Weight | 3.8oz (110g) |
SKU | DO600 |
---|---|
Manufacturer Part Code | DO600 |
Country of Origin | Taiwan |
