Accurately trace cables through walls and much more with this cable locator set!
Containing both a receiver and transmitter, the system works by injecting a variable signal directly into the installation you're testing. The receiver picks up on this signal and indicates problems with the cable, cable location, voltage levels and more. It can be used with cables in walls and can even trace cables underground up to a depth of 2.5m.
The signal used in testing can be changed either automatically or manually should you prefer finer adjustments.
DiLog DL2080 Cable Locator Set Key Features
- Trace underground cables down to 2.5m
- Transmitter with digitally-coded signal for clear signal identification
- Receiver with LCD display of signal code, strength indication and voltage indication
- Automatic or manual adjustment of recieving signal sensitivity
- Operates on both live and dead cables

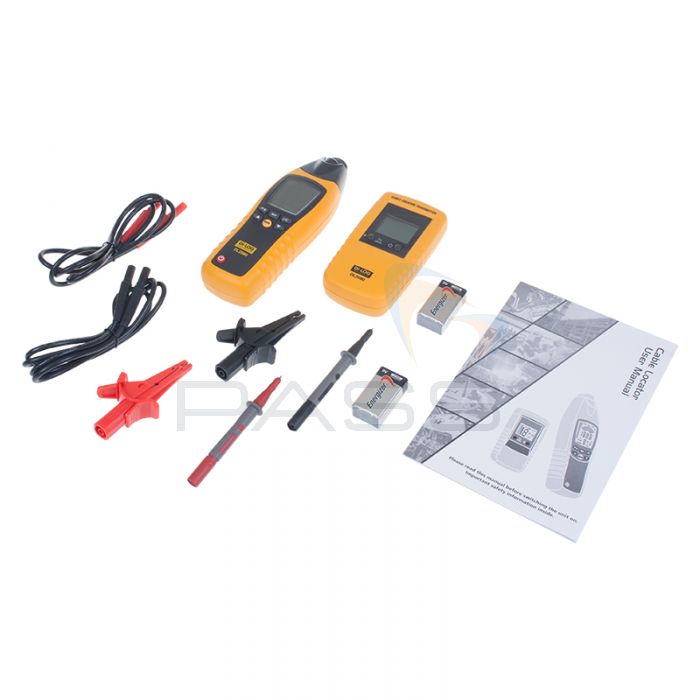

What's Included?
- Transmitter
- Receiver
- 1 x 9V Battery
- 2 x AAA Batteries
DiLog DL2080 Technical Specifications
Voltage Range | 12, 50, 120, 230 and 400V |
Frequency Range | 0 - 60Hz |
Output Signal | 125Hz |
Tracing Depth | 0 - 2.5m wall/underground |
Mains Voltage Detection | 0 - 0.4m |
Safety | EN 61010-1 |
Overvoltage Category | CAT III 300V |
Power Supply | 9V and 2 x AAA batteries |
Dimensions | 192 x 61 x 37mm |
Weight | 180g |
